| Model | 778S |
| General Description | Network Player |
| Design Philosophy and Core Technology | ESS Sabre ES9038Q2M 32-bit DAC
RK3399 ARM® Cortex-A72 @ 2.0GHz ARM® Cortex-A53 @ 1.5GHz

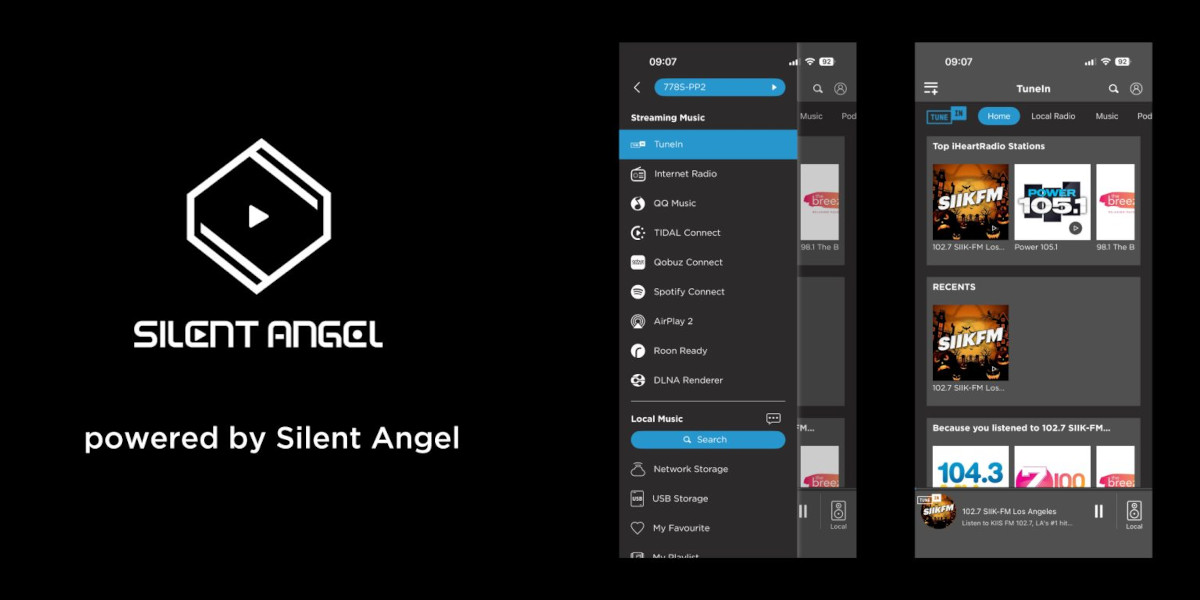

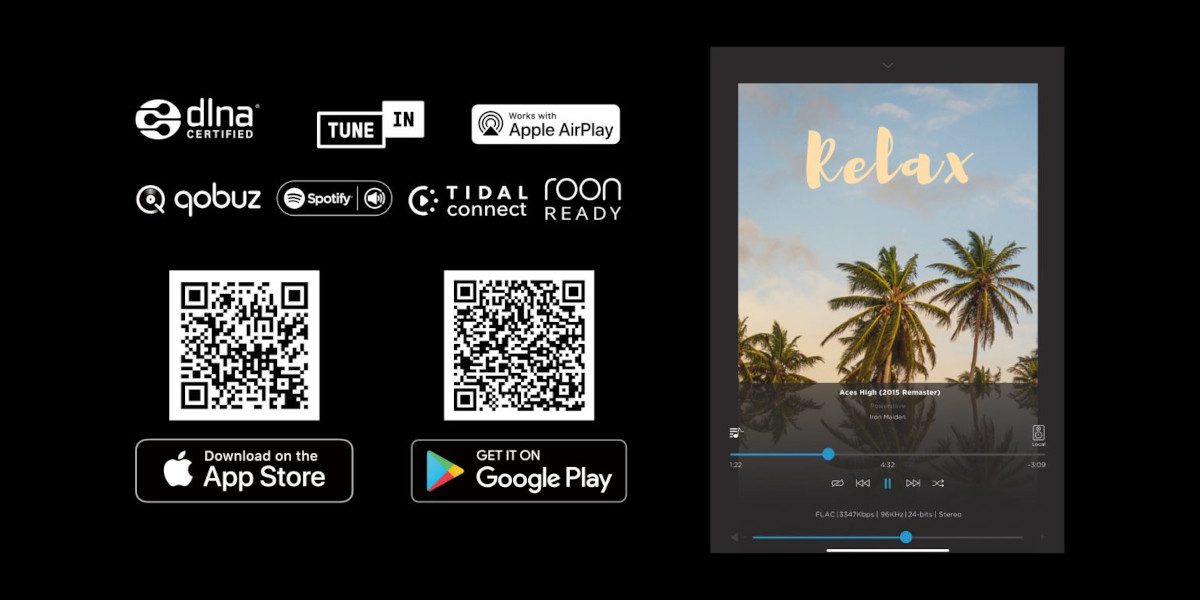

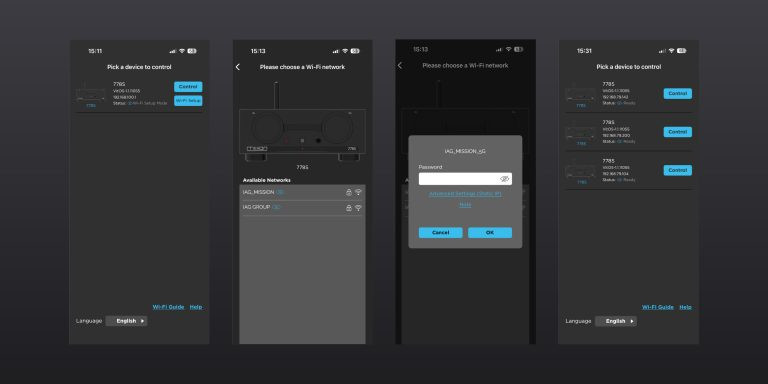

iOS / Android Mission 778S App control
Powered by Silent Angel Streaming technology (IEEE 802.11 a/b/g/n/ac,2.4/5GHz)
Native support for Spotify Connect, TIDAL Connect, Qobuz Connect, TuneIn Internet Radio, Roon Ready, AirPlay 2
Music from network shared storage (over SMB/CIFS)
USB storage / ?ash drive / USB hard disk (Single-partition FAT32, exFAT)
2.23” High contrast OLED display |

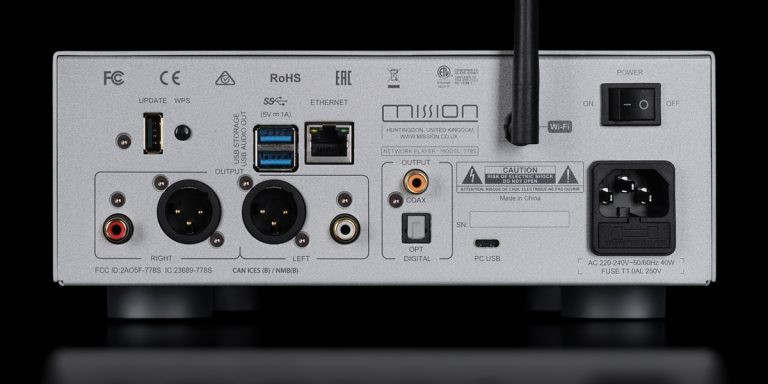

| Inputs | 1 x PC USB (USB Type-C), 1 x Ethernet 10/100/1000Base-T Ethernet
1 x USB-A for MCU Update, 2 x USB-A for USB Storage |
| Outputs | 1 x RCA (pair) analogue outputs, 1 x XLR (pair) analogue outputs
1 x Optical digital output, 1 x Coaxial digital output
2 x USB-A for USB Audio Out, 1 x Headphone |
| Supported File Formats | DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF, APE
Compressed (lossy) Audio: MP3, WMA, AAC, OGG |
| Sampling Frequency | PCM: 44.1kHz-768kHz (705.6kHz/768kHz Fixed-point supported via App streaming)
DSD: DSD64, DSD128, DSD256(DoP), DSD512(PC USB) |
| Digital Section | |
| Digital Output Intensity | 500 +/- 50mVpp |
| Output Impedance | 75 ohms |
| Frequency Response | -0.01dB (20Hz - 20kHz, ref.1kHz) |
| Max. Sampling Frequency | 192kHz / 24-bit |
| Digital Output | 1 x Coaxial, 1 x Optical, USB Audio Out |
| D to A Converter | |
| Variable Output Voltage (0dBFS, 1kHz) | 0 – 2.05Vrms (RCA)
0 – 4.1Vrms (XLR) |
| DAC | ES9038Q2M |
| Frequency Response | +/-0.5dB (20Hz - 20kHz, ref.1kHz) |
| Total Harmonic Distortion | <0.001% (1kHz @ 2.05Vrms) |
| Max. Sampling Frequency | 768KHz / 32-bit |
| Signal-to-Noise Ratio (A-Weighted) | >116dB (RCA), >120dB (XLR) |
| Output Impedance | 120ohm (RCA)
56ohm (XLR) |
| Headphone Amplifier | |
| Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW) |
| Output Impedance | 2.35 ohm |
| Load Impedance | 20-600 ohm |
| General | |
| Standby Power Consumption | <0.5W |
| Net Weight | 5.3kg |
| Gross Weight | 6.7kg |
| Dimensions (mm)(W x H x D) | 236 x 98 x 357mm
|
| Carton Size (mm)(W x H x D) | 39 6x 190 x 445mm |
| Finish | Black / Silver |
Power Requirements
(depending on region) | 220-240V ~ 50 / 60Hz
100-120V ~ 50 / 60Hz |
Safety Regulation Conformity
Standard Accessories | Power Cord, Remote Control, User Manual |
