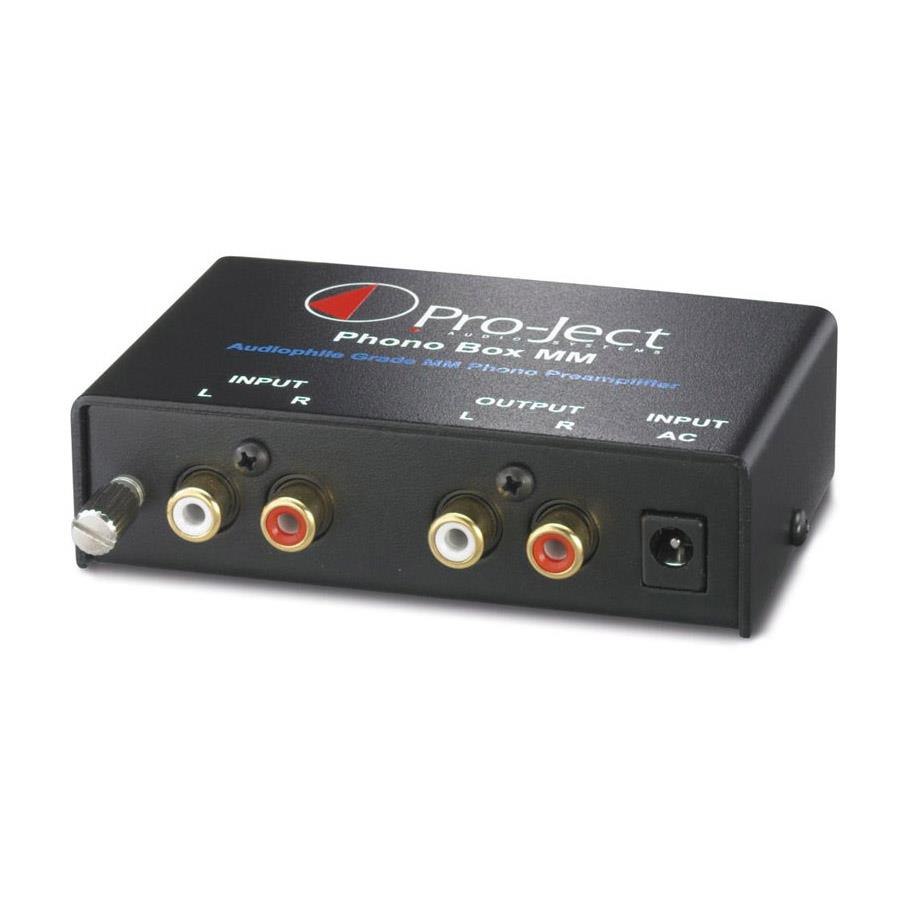

Project Phonobox MM Phono Pre Amplifier
A sturdy and industrial-feeling introductory phono stage. Designed specifically to amplify your moving magnet cartridge output to line level. The form factor of the unit is small and subtle, so it can be placed near the turntable/amp without being intrusive.
Key Features:
Metal case shields the electronics from vibrational and electromagnetic interference
Special low-noise ICs used
Optimal channel separation through dual-mono circuitry
Gold plated RCA connection sockets
Outboard power supply included
Amplification and RIAA equalisation for MM cartridges
Small size allows installation close to record player
Technical Data:
Input Impedance: 47kO / 100pF
Gain: 32dB
Output Voltage Typically: 200mV / 1kHz at 5mV / 1kHz
Noise Floor: 88dB - A Weighted
THD: <0.05%
RIAA Equalisation Curve Accuracy: 20Hz - 20kHz / max. 0.5dB
Power Consumption: 20mA DC
Outboard Power Supply: 18V / 250mA DC
Dimensions (W x H x D)(w/Plugs): 107 x 30 x 61(75)mm
Weight: 280g (Without Power Supply)
Please note: You will need interconnect cables to connect this phono stage to your amplifier.
AMPLIFIER SPECS |
: |
Type |
Integrated |
Tone controls? |
No |
INPUTS |
: |
Bluetooth input? |
No |
Dedicated turntable input? |
No |
USB connection? |
No |
XLR inputs? |
No |
OUTPUTS |
: |
Headphone output? |
No |
XLR outputs? |
No |
Subwoofer output? |
No |
GENERAL |
: |
Remote control? |
No |
GREEN SPECS |
: |
Auto Power Off? |
No |
