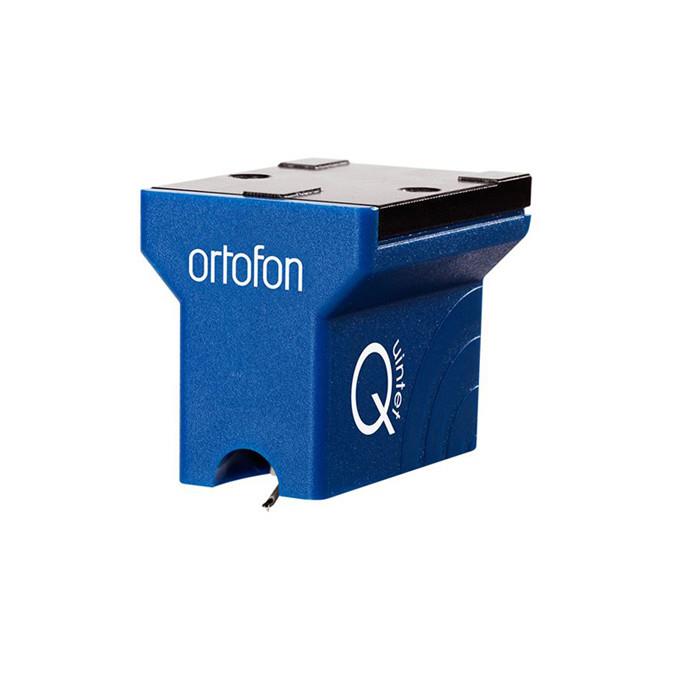

Ortofon Quintet Blue M/C Cartridge
The Quintet Blue is a very homogeneous cartridge
The Quintet Blue's sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
It features a Nude Elliptical diamond mounted on an aluminium cantilever.
The Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic.
MC Quintet Blue Technical data
Output voltage at 1 kHz 5 cm/sec - 0.5 mV
Channel balance - < 1.5 dB
Channel separation at 1 kHz - > 21 dB
Channel separation at 15 kHz - > 14 dB
Frequency range at -3 dB - 20-25.000 Hz
Frequency response 20-20.000 Hz - +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *) - 70 µm
Compliance, dynamic, lateral - 15 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force recommended - 2.3 g (23 mN)
Tracking angle - 20º
Internal impedance, DC resistance - 7 Ohm
Recommended load impedance - >20 Ohm
Cartridge body material - ABS/Aluminium
Coil wire material - Pure 4-nines copper
Cartridge colour - Blue
Cartridge weight - 9 g
*) Typical value
What Hi-Fi Awards 2023
"What Hi-Fi? 2023 Award Winner!"
What Hi-Fi Awards 2021
"What Hi-Fi? 2021 Award Winner!"
What HiFi Awards 2020
"What Hi-Fi? 2020 Award Winner!"
What Hi-Fi Awards 2022
"What Hi-Fi? 2022 Award Winner!"
What Hi-Fi 5 Star Review
"If you’re after an affordable moving coil cartridge, we haven’t heard a better option than the Quintet Blue
