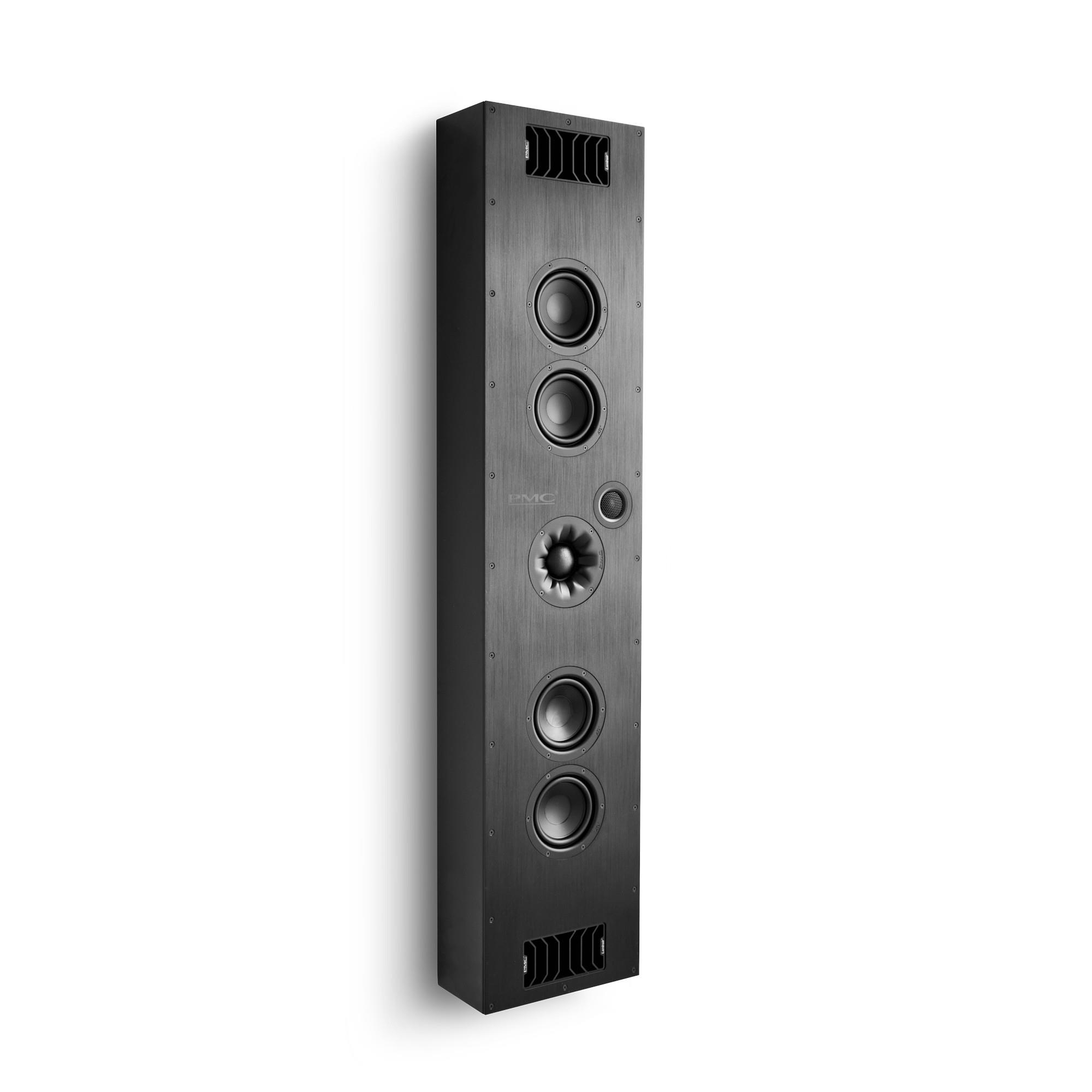

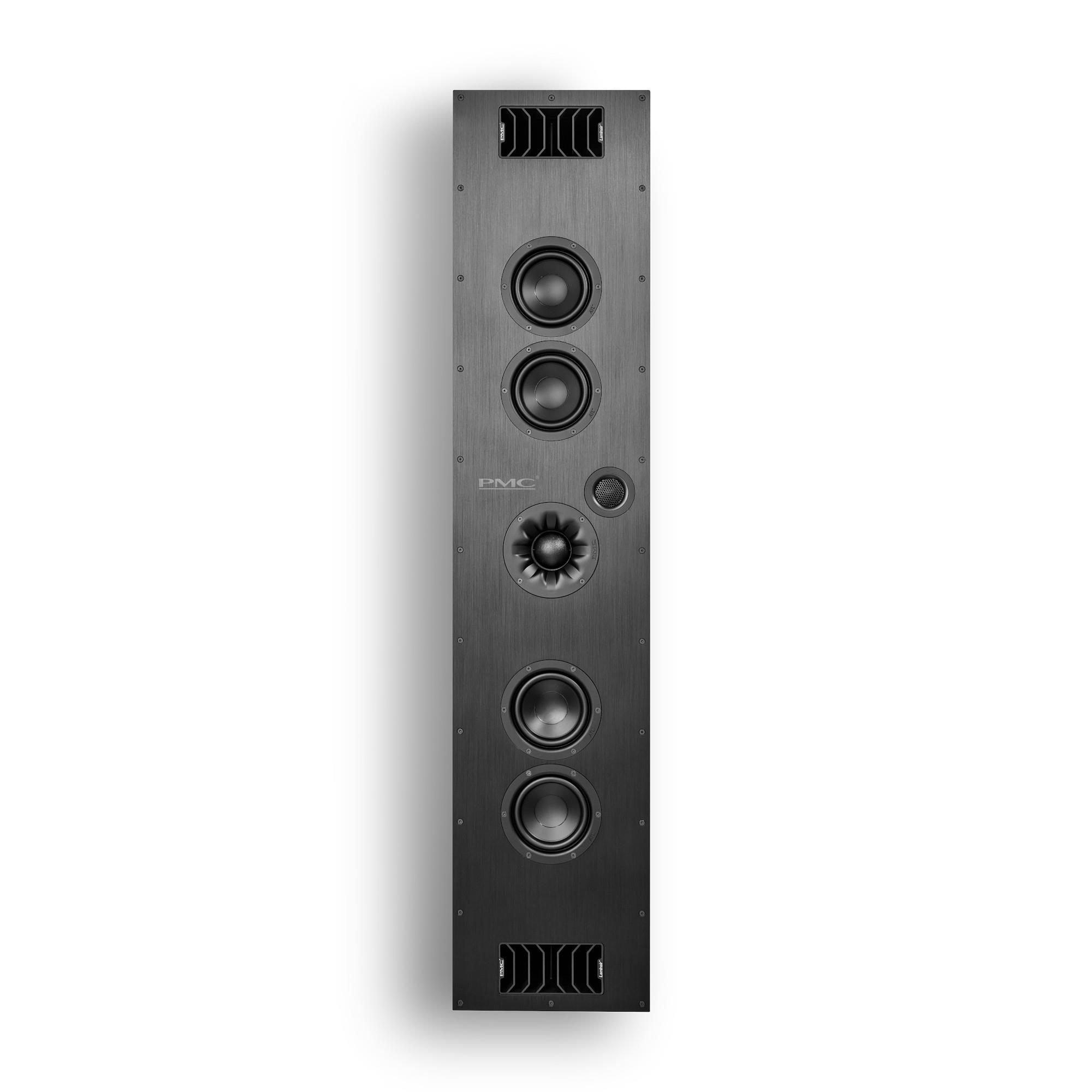

PMC ci140 On-Wall Speaker (Single)


The ci140 is the ultimate in on-wall home theatre loudspeaker design. With a complement of four 5” LTX™ long-throw woofers & the Laminair-enhanced Advanced Transmission Line.

The ci series are ideal for playback of stereo and immersive formats, and the largest models provide the greatest headroom, bass and dynamics. All models apart from the ci140 and ci140sub may be mounted in- or on-wall, thanks to their Qikfire™ fittings, bezel-less grille and stylish cabinet sleeve.

This model is configurable as an on-wall loudspeaker


On-wall mounting

On-wall mounting is just as straightforward as in-wall mounting, using the supplied interlocking bracket, which is designed to also offer pin-point level adjustment. For the ci30, ci45, ci90slim and ci65 an optional OWK - on-wallmounting kit in white or black may be fitted around the cabinets to conceal the in-wall mounting system creating an elegant and discrete on-wall loudspeaker.

Optional Extras

Please contact your local store for optional extras

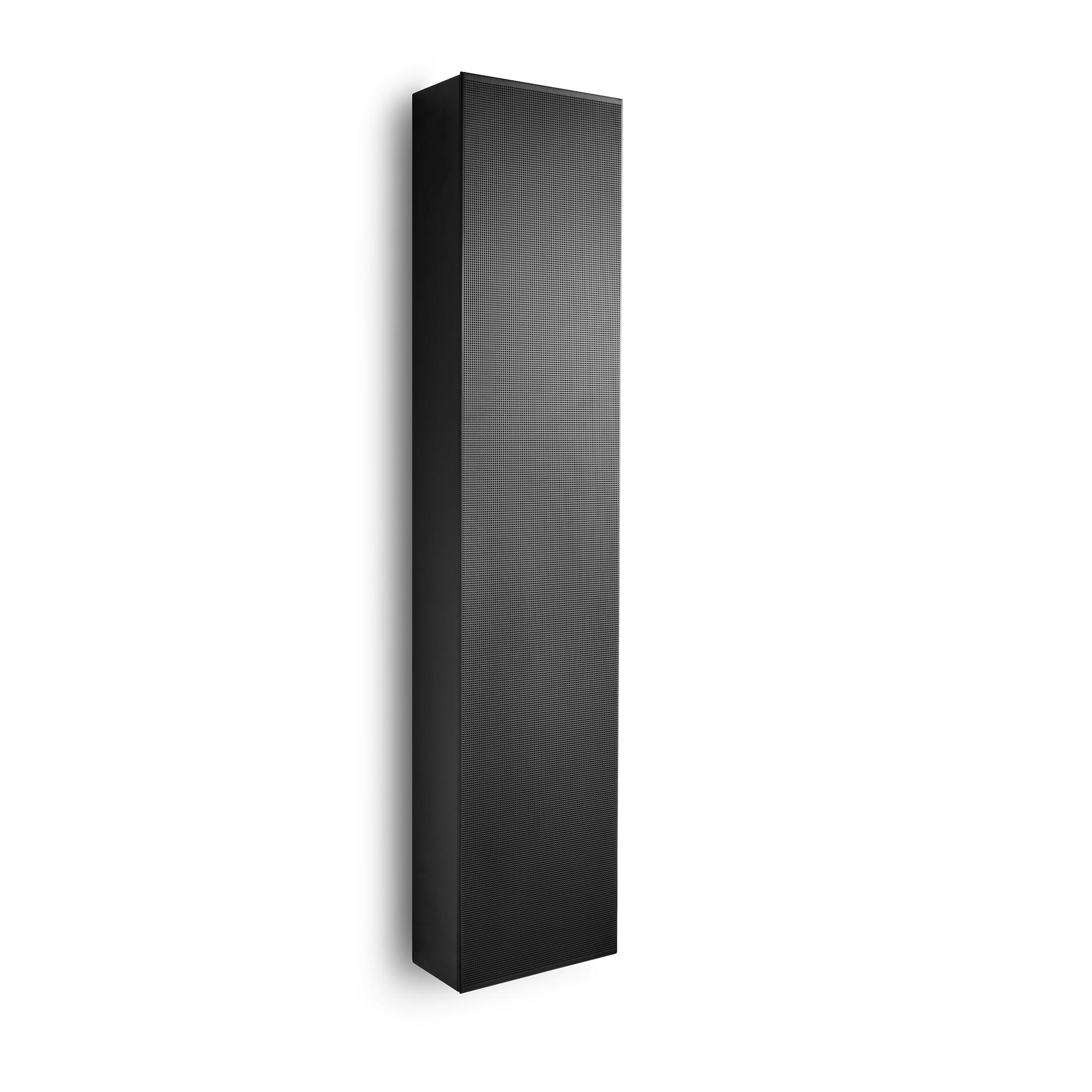

Black Silk Grille

BRKT - Wall Bracket

The BRKT allows movement in both vertical and horizontal planes allowing the cabinets to be angled.


The source of PMC’s legendary natural, realistic sound is the Advanced Transmission Line (ATL) bass-loading technology, professionally proven all around the world. ATL uses energy generated by the bass unit in a much more intelligent, efficient way than speaker designs based on ported or sealed boxes.

The speed of the Qikfire™ in-wall mounting system makes the entire range very “installer-friendly”. The ci30, ci45, ci90slim and ci65 are fitted with Qikfire, a spring-loaded mounting system which allows the loudspeaker to be fixed in position with a simple twist of a screwdriver and permits post-installation micro-adjustment. Removal, is just as easy as installation, with a twist.

Available Finishes:ci series black
Dimensions:H 1400mm (55") x W 300mm (11.8") x D 153mm (6")
Drive Units:LF - 4 x 133mm (5.25”) Natural Fibre LTx™
MF - 50mm (2”) PMC55 n-compass™ soft dome
HF - 27mm (1”) soft dome
Effective ATL™ Length:2.3m (7.5ft)
Frequency Response:32Hz(-3dB), 29Hz(-6dB)-25kHz
Impedance:4 Ohms
Input Connectors:1 pair 4mm sockets
Sensitivity:93dB (2.83v @1m)
Recommended Amp Power:10 - 300W
Recommended Drive Unit Torque Settings:HF: 0.5Nm - MF: 0.6Nm - LF: 0.6Nm
Weight:29.4kg inc grille (unboxed)
