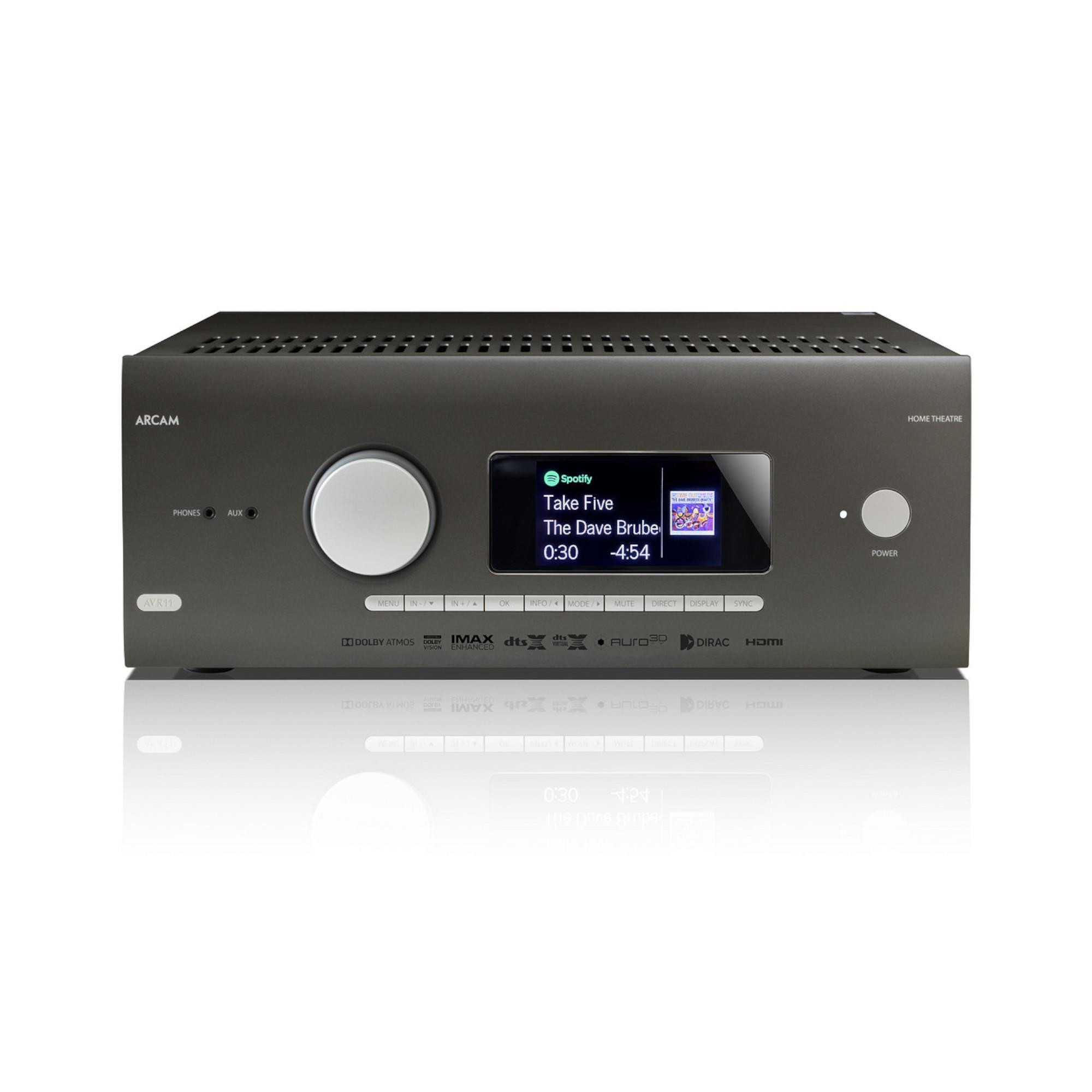

Arcam AVR11
AV Receiver

£2,799.00
FREE Home Delivery
In-stock
Order now for next shipment or check Click & Collect for store availability

Arcam AVR11 AV Receiver

Rich Musicality + Immersive Sound = Stunning Realism

The AVR11 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR11 can deliver incredible theatre experiences.

The Arcam AVR11 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR11 features an over-engineered power supply and transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

PRODUCT DETAILS

  • Dolby Atmos, DTS:X & AURO-3D 7.1.4 decoding
  • 7 HDMI inputs, 2 HDMI outputs, eARC compatible
  • HDMI 2.1 with HDCP2.3
  • All inputs support 8K@60fps and 4K@120fps
  • Supports Dolby Vision, HDR10+, HDR10 and HLG
  • Includes Dirac Live® room correction
  • Ready for Dirac Live Bass Control*
  • Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
  • 7 Channels of Class AB power amplification
  • Wi-Fi / Ethernet, RS232 and IR control
  • Google Chromecast® built-in for streaming audio
  • Apple® Airplay2
  • Bluetooth aptX®HD
  • Free MusicLife iOS and Android UPnP app
  • Supports MQA
  • Roon Ready

Continuous power output, per channel, 8Ω/4Ω

2 channels driven, 20Hz - 20kHz, <0.02% THD80W/100W
2 channels driven, 1kHz, 0.2% THD 85W/120W
7 channels driven, 1kHz, 0.2% THD60W/85W
Residual noise & hum (A-wtd)<0.15mV

Stereo Line Inputs

Maximum input4.5V rms
Nominal sensitivity1V, 2V, 4V (user adjustable)
Input impedance47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct100dB/110dB
Frequency response20Hz—20kHz ± 0.2dB

Preamplifier Outputs

Nominal output level1V RMS (max. 5V RMS)
Output impedance560Ω
THD+N (20Hz—20kHz) –100dB

Headphone Output

Maximum output level into 32Ω5Vrms
Output impedance<100Ω

General

Mains voltage110–120V or 220–240V, 50–60Hz
Power consumption (maximum)1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet)433 x 425 x 171mm
Weight (net)16.5kg
Weight (packed)19.8kg
