Arcam AV41
AV Preamplifier

SAVE
£1,000
Black Friday Offer
Interest Free Credit Available
£3,999.00
RRP/SRP £4,999.00

Free Sennheiser SPORT True Wireless Headphones

FREE Home Delivery
Out of Stock Online
Check availability in our stores or order now for next shipment
Sevenoaks Rewards logo
Sign In To Rewards To Claim The Following Promotions

Free Sennheiser SPORT True Wireless Headphones

Free Sennheiser SPORT TW For Rewards Members

Optional Speaker Cable

In-stock
In-stock
In-stock
In-stock
£105.00
£150.00
£105.00
£150.00
£192.50
£275.00
£192.50
£275.00

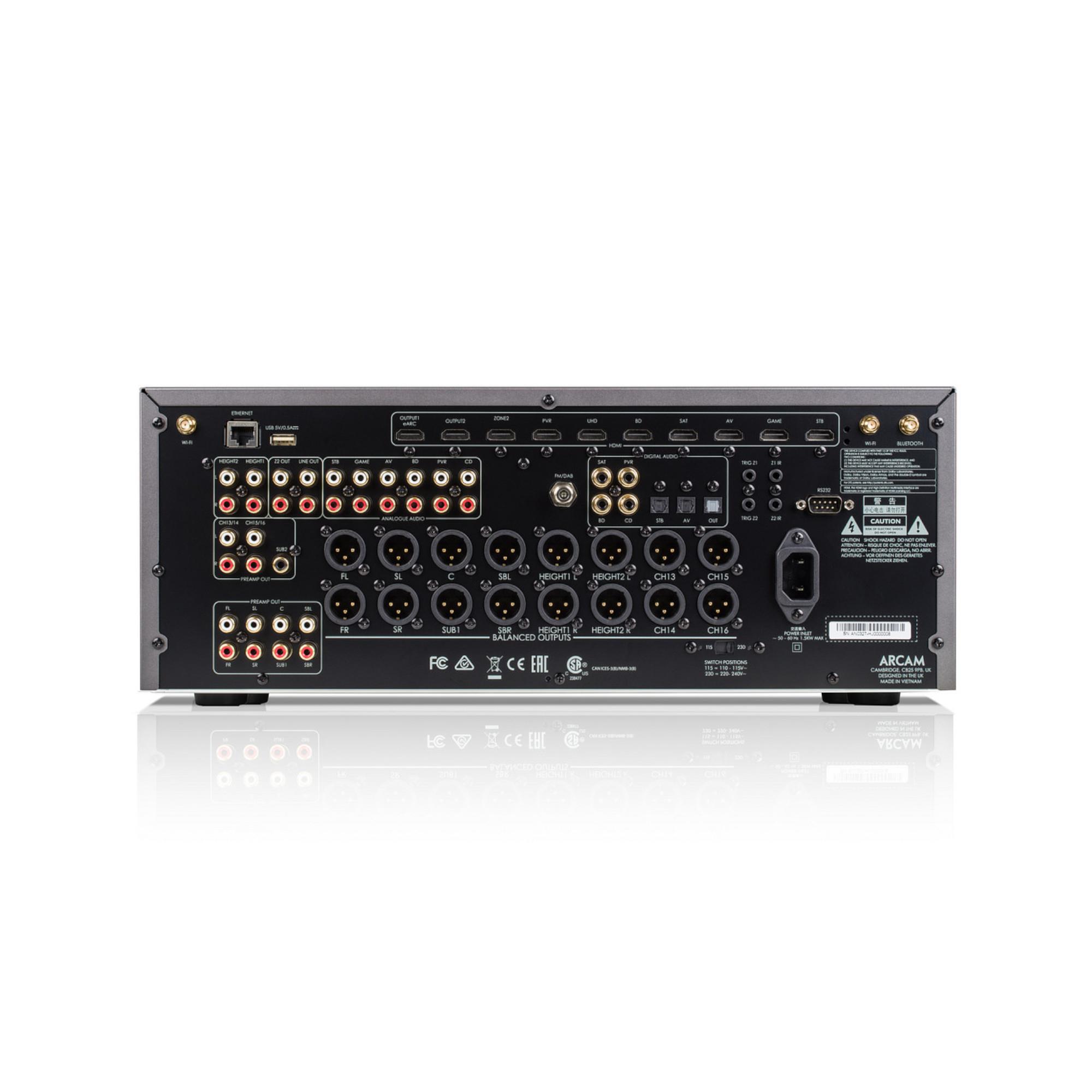

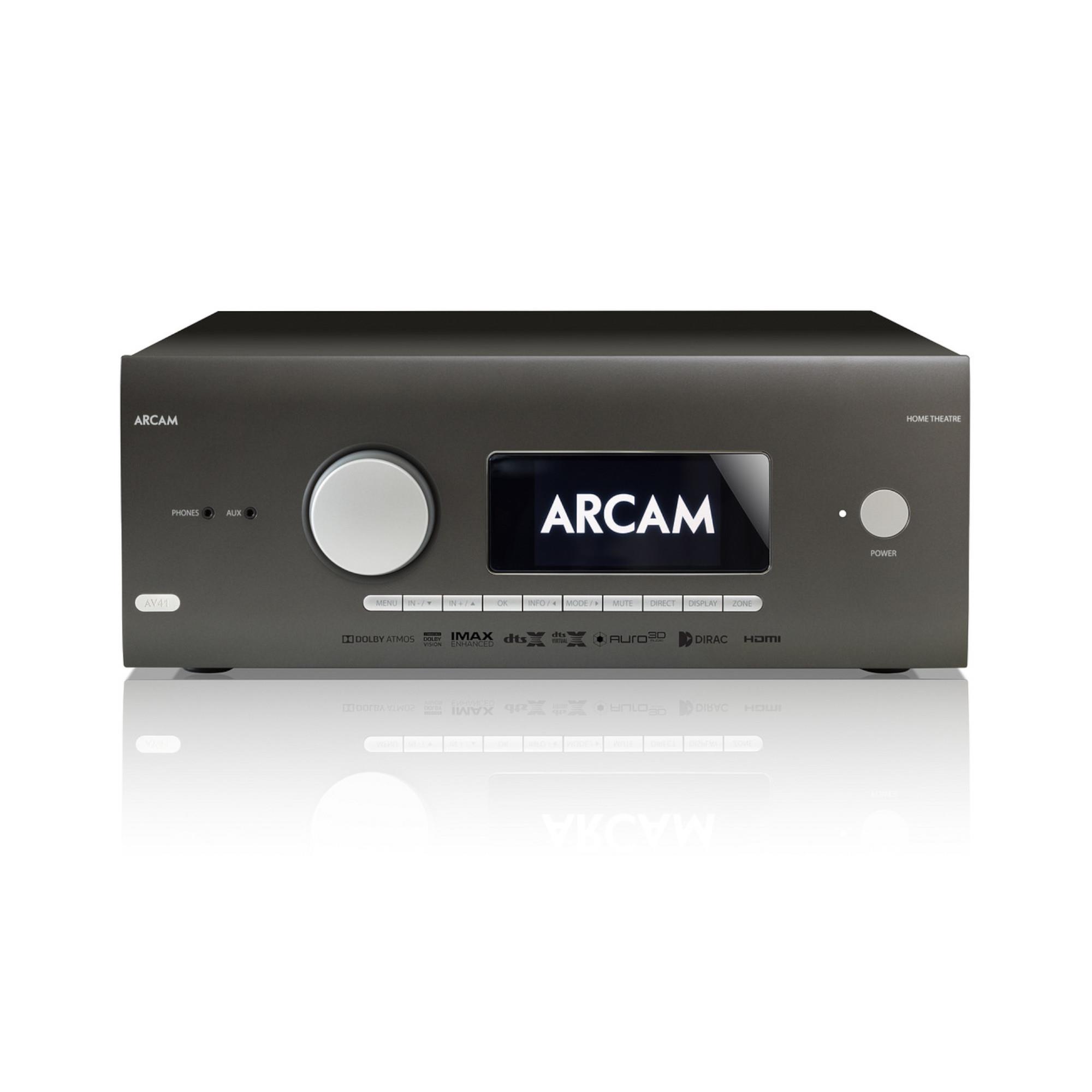

Arcam AV41 AV Preamplifier

Rich Musicality + Immersive Sound = Stunning Realism

The AV41 is a high-performance, audio/visual processor that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AV41 can deliver incredible theatre experiences in partnership with Arcam power amplifers.

The Arcam AV41 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AV41 boasts XLR balanced outputs for all 16 channels to deliver the highest quality analogue connection to power amplifiers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

PRODUCT DETAILS

  • 16 Channels of Dolby Atmos, DTS:X & AURO-3D decoding
  • 7 HDMI inputs, 3 HDMI outputs inc Zone 2, eARC compatible
  • HDMI 2.1 with HDCP2.3
  • All inputs support 8K@60fps and 4K@120fps
  • Supports Dolby Vision, HDR10+, HDR10 and HLG
  • Includes Dirac Live® room correction
  • Ready for Dirac Live Bass Control*
  • Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
  • 16 transformerless balanced XLR output channels
  • Pairs with PA720, PA240 & PA410 power amplifiers
  • Wi-Fi / Ethernet, RS232 and IR control
  • Google Chromecast® built-in for streaming audio
  • Apple® Airplay2
  • Bluetooth aptX®HD
  • Free MusicLife iOS and Android UPnP app
  • Roon Ready and supports MQA

Continuous power output, per channel, 8Ω/4Ω

2 channels driven, 20Hz - 20kHz, <0.02% THD80W/100W
2 channels driven, 1kHz, 0.2% THD 85W/120W
7 channels driven, 1kHz, 0.2% THD60W/85W
Residual noise & hum (A-wtd)<0.15mV

Stereo Line Inputs

Maximum input4.5V rms
Nominal sensitivity1V, 2V, 4V (user adjustable)
Input impedance47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct100dB/110dB
Frequency response20Hz—20kHz ± 0.2dB

Preamplifier Outputs

Nominal output level1V RMS (max. 5V RMS)
Output impedance560Ω
THD+N (20Hz—20kHz) –100dB

Headphone Output

Maximum output level into 32Ω5Vrms
Output impedance<100Ω

General

Mains voltage110–120V or 220–240V, 50–60Hz
Power consumption (maximum)1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet)433 x 425 x 171mm
Weight (net)16.5kg
Weight (packed)19.8kg
AV41 User ManualAV41 Data SheetAV41 CAD Drawing
