| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.74 inch with C2 Fine |
| Color Light Output | 2,700 Lumen In accordance with IDMS15.4 |
| White Light Output | 2,700 Lumen In accordance with ISO 21118:2020 |
| Resolution | 4K 3840 x 2160, 8.3m pixels, 16:9 |
| High Definition | 4K enhancement |
| Aspect Ratio | 0.672916666666667 |
| Contrast Ratio | 2,500,000 : 1 |
| Light source | Laser |
| Laser Light source | 80 mW 20,000 hours Durability High, 20,000 hours Durability Medium, 20,000 hours Durability Eco |
| Keystone Correction | Manual vertical: ± 30 °, Manual horizontal ± 30 ° |
| Colour Video Processing | 10 Bits |
| 2D/3D Frequency Image | 384 Hz / 480 Hz |
| 2D Vertical Refresh Rate | 384 Hz - 480 Hz |
| Colour Reproduction | Upto 1.07 billion colours |
| Throw Ratio | 1.35 - 2.84:1 |
| Zoom | Motorized, Factor: 1 - 2.1 |
| Lens Shift | Motorized - Vertical ± 96.3 %, horizontal ± 47.1 % |
| Lens position memory | 10 positions |
| Screen Size | 50 inches - 300 inches |
| Projection Distance Wide/Tele | 3 m - 6.4 m ( 100 inch screen |
| Projection Lens F Number | 44622 |
| Projection Lens Focal Length | 22.5 mm - 46.7 mm |
| Projection Lens Focus | Motorized |

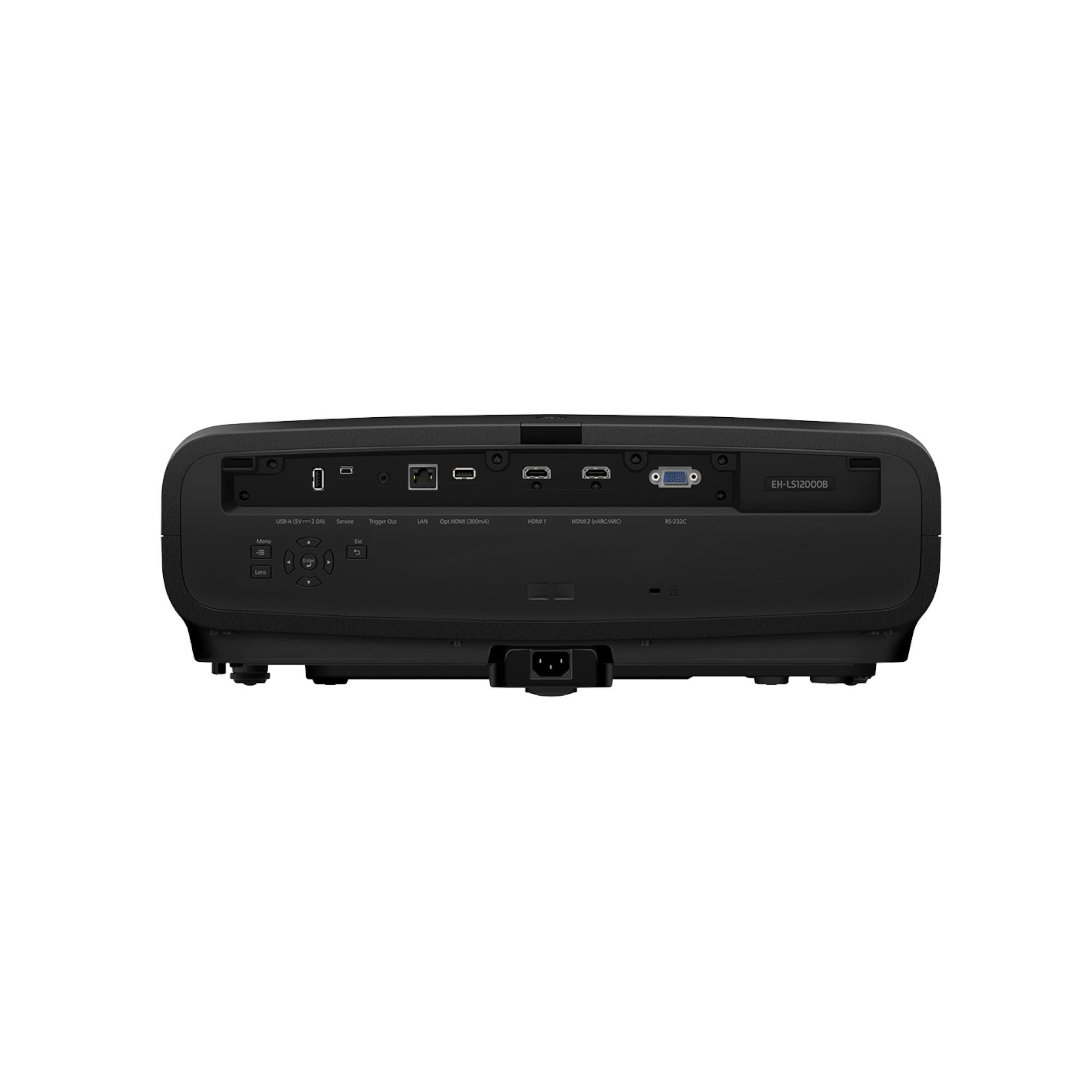

| Interfaces | USB 11.0-A (2x), USB 2.0 Mini-B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Trigger out, HDMI ARC, HDMI (HDCP 2.3) (2x) |
| Security | Kensington lock |
| 3D | No |
| 2D Colour Modes | Dynamic, Natural, Cinema, Bright Cinema, Vivid |
| Other features | 4K enhancement, A/V mute, Digital zoom, Frame interpolation, Horizontal and vertical keystone correction, ISF certification, Instant on/off, Lens position memory, Long light source life, Quick Corner, Super resolution |
| Video Color Modes | Cinema, Dynamic, Natural, Bright Cinema, Vivid |
| Projector control | via: Crestron Integrated Partner, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Power consumption | 302 Watt, 198 Watt (economy), 0.4 Watt (standby) |
| Heat Dissipation | 1,026.8 BTU/hour (max) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |

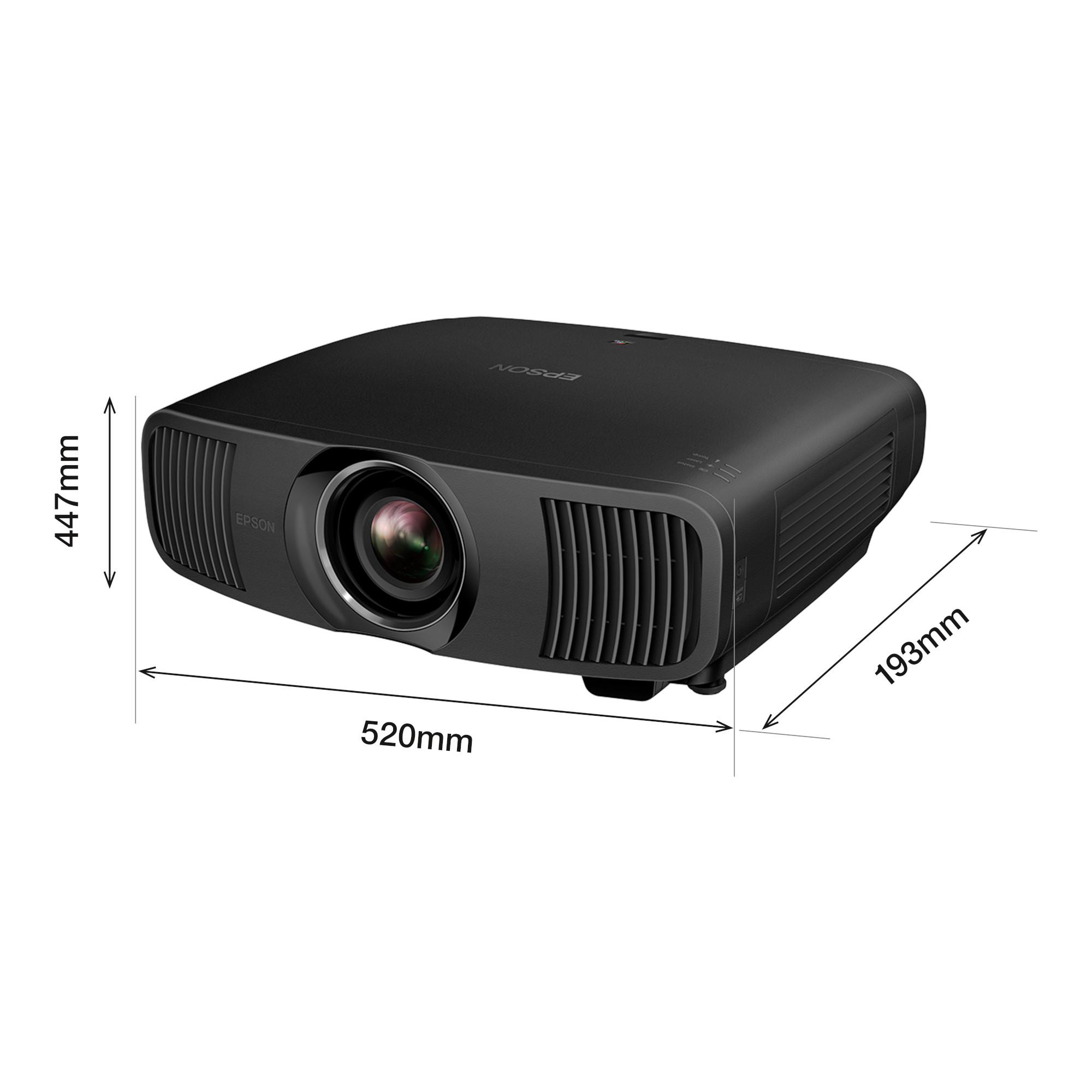

| Product dimensions | 520? x 447 x 193 mm (Width x Depth x Height) |
| Product weight | 12.7 kg |
| Noise Level | Normal: 30 dB (A) - Economy: 22 dB (A) |
| Supported Temperature | Operation 5° C - 35° C, Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance. |
| What's in the box | Cable cover, Main unit, Power cable, Remote control incl. batteries, User guide |
| Room Type / Application | 4K Gaming, 4K Streaming, Home Cinema, Sports |
| Positioning | Ceiling Mounted, Desktop |
| Colour | Black |
| Warranty | 60 months Carry in or 12,000 h |
