JVC DLA-NZ500
Native 4K D-ILA Projector

Options:
New Product
3 Year Warranty Available
Interest Free Credit Available
£6,499.00
Claim Free 3 Year Warranty
FREE Home Delivery
Out of Stock Online
Check availability in our stores or order now for next shipment
New Product
3 Year Warranty Available
Interest Free Credit Available
£6,499.00
Claim Free 3 Year Warranty
FREE Home Delivery
Out of Stock Online
Check availability in our stores or order now for next shipment

JVC DLA-NZ500 Native 4K D-ILA Projector

The Art Of Projection

The JVC DLA-NZ500 projector has been completely redesigned and includes a new casing, optical unit, lens system, and circuit boards. Using JVC’s proprietary BLU-Escent Laser light source with 2,000 lumens and Native 4K D-ILA devices to display 4,096 x 2,160 pixel images and a 40,000:1 Native contrast ratio.

JVC DLA-NZ500 4K Projector

All Components Redesigned

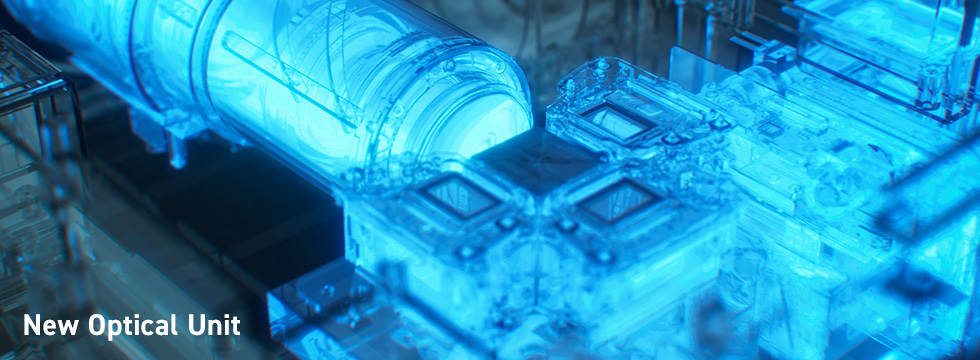

The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

JVC DLA-NZ500 4K Projector

High Brightness and Long life

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ700 achieves a high brightness of 2,300lm and the DLA-NZ500 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

JVC DLA-NZ500 4K Projector

Superior Resolution

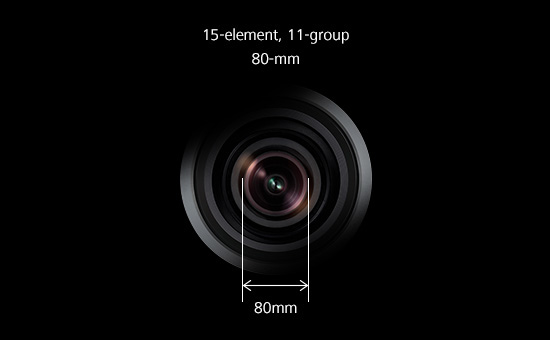

Newly designed large aperture (80mm, 11groups, 15lenses) 4K compatible lens delivers full native 4K D-ILA resolution to every corner of the screen.

JVC DLA-NZ500 4K Projector

Gen2 Frame Adapt HDR Function for Brighter and More Colorful HDR Images

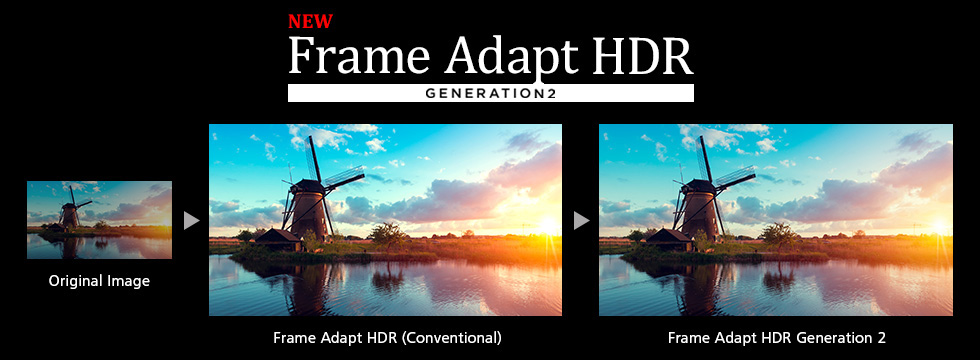

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.

JVC DLA-NZ500 4K Projector

Deeper Blacks for Richer Gradation

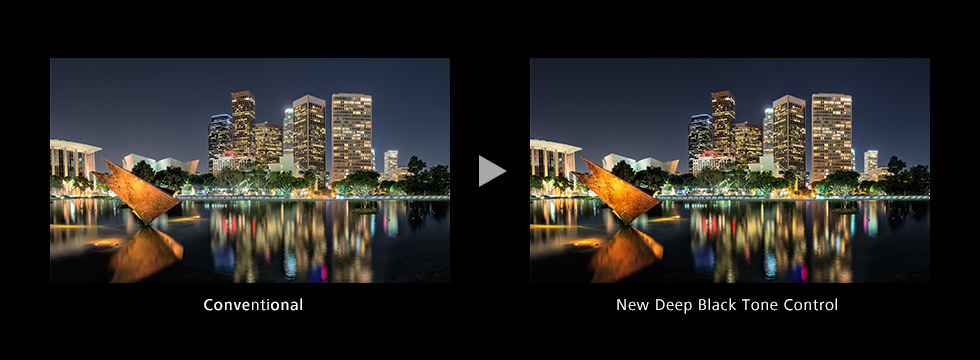

The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

JVC DLA-NZ500 4K Projector

Features

  • Completely redesigned interior and exterior results in world's smallest native 4K projector
  • New BLU-Escent Laser Light Source
  • New 80mm, 15-element, 11-group high-quality lens
  • Native Contrast Ratio of 40.000:1 translates to a spectacular Dynamic Contrast Ratio of 8 :1
  • 2x HDMI (32 Gbps, HDCP 2.3) inputs, supporting 4K60P input signals
  • HDR10+ metadata supported to automatically reproduce images as the creator intended.
  • Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images. It includes improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.
  • Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
  • Color Management System with 6-axis Matrix
  • Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
  • 0.69-inch 4K D-ILA (4096 x 2160) device x 3
  • High brightness of 2,000 lm provides vibrant and dynamic images
  • FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
  • For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
  • ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
  • Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
  • Auto-Calibration Function using an optical sensor.
  • New picture mode ”Vivid” for SDR Images
  • DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience

Device

D-ILA TechnologyYes
Chip Type0.69-inch 4K D-ILA device
Native Resolution4096 x 2160
Number Of Chips3
Display Resolution4096 x 2160

Light Source

Laser [1]Yes
TypeBLU-Escent Laser Diode
Life Time (Standard Mode)20000 hours


Brightness2000 lm
Dynamic Contrast8 : 1
Native Contrast40000 : 1
Dynamic Light Power controlYes
ModesLow,High,Balance,Off
Manual ApertureYes
Range-15 (stops down) to 0 (opens up)
100% REC 709Yes
Color Bit Depth12 bit
ISFccc Certification [2]Yes

HDR

HDR10Yes
HDR10+ [3]Yes
Frame Adapt HDR [4]Yes
HLGYes
Mastering Info DisplayYes
Info dataMaxCLL, MaxFALL , DML
HDR Picture ModesBT.709 / BT.2020 / DCI / HDR
Deep Black Tone ControlYes

Lens

Zoom1.6 x
Throw Ratio1.34 - 2.14 (16:9)
1.26 - 2.01 (17.9)Diameter
80 mmMaterial
Build15-element, 11-group.
Lens ShiftYes
Range Horizontal± 28 %
Range Vertical± 70 %
Motorized ZoomYes
Motorized ShiftYes
Motorized FocusYes
Projection Display size (diagonal)60 - 200 inch
Memory FunctionYes
Number of user presets5
Lens CoverYes

HDMI

HDMI [6]Yes
Number of Inputs2
Data Rate32 Gbps
HDCP Version2.3
4K60P signal inputYes
Video Signal range480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
PC Signal range640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
Input Level AdjustmentAuto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space RangeAuto/ YCbCr444 / YCbCr422 / RGB
EDID ModesStandard, Option1 , Option2  (older hardware may need to use Option1 or Option2 settings)

Connections

LANRJ45
USB(Type A) for firmware update or backup

Picture Settings

Picture ModesNatural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
Color TemperaturesXenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth12 bit
Gamma AdjustHDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, 3 Custom modes
Color Management6-Axis adjustable CMS
MPCYes
Filmmaker Mode [7]Yes
Auto CalibrationYes
Optional Probe neededYes
Installation ModeYes
Number of modes5
Included settingsLens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes4 Modes (A, B, C, D)
Control4 SDDPYes

Power & Environment

Power RequirementAC100-240V, 50/60Hz
Projector in Use280W
StandbyEco-mode: 0.25W
Network Standby1.40W (LAN)
Switchover timeApprox. 15 min. (To standby or networked standby; default)
Fan Noise23 dB
Eco ModeYes
Standby TimerYes
Operating Temperature5°C to 35°C
Operating Humidity20% to 80%
Installation AngleHorizontal +/- 10 degree / Vertical +/- 10 degree
Installation HeightBelow 2,000 m

In the box

Remote ControlYes, RM-MH27
Quick GuideYes
Power CordYes
BatteriesYes, 2 x AAA-size batteries

Dimensions & Weight

Product Dimensions (WxHxD)450 x 180 x 479 (mm)
Product Weight15 Kg
Package Dimensions (WxHxD)585 x 361 x 600 (mm)
Package Weight18.9 Kg
