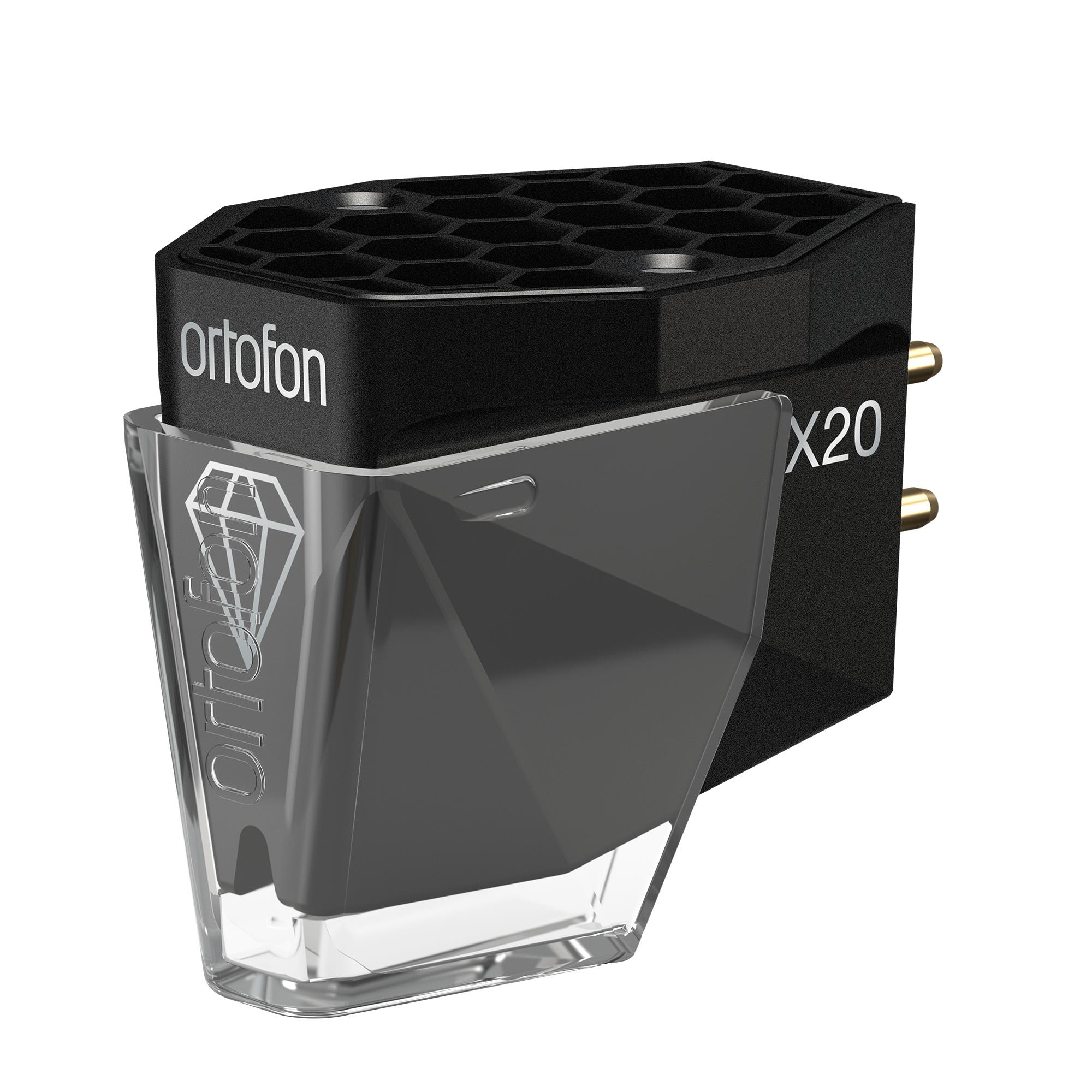

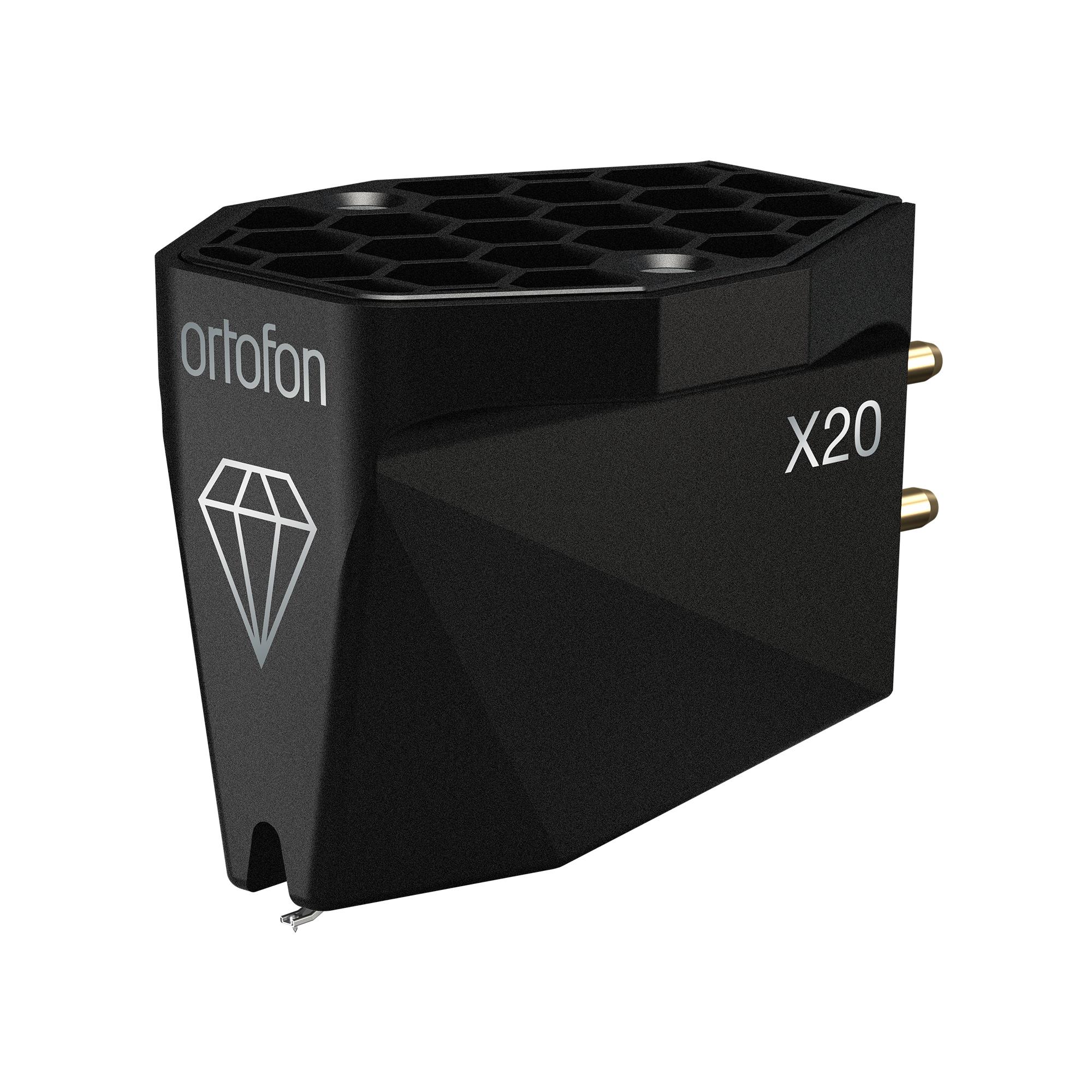

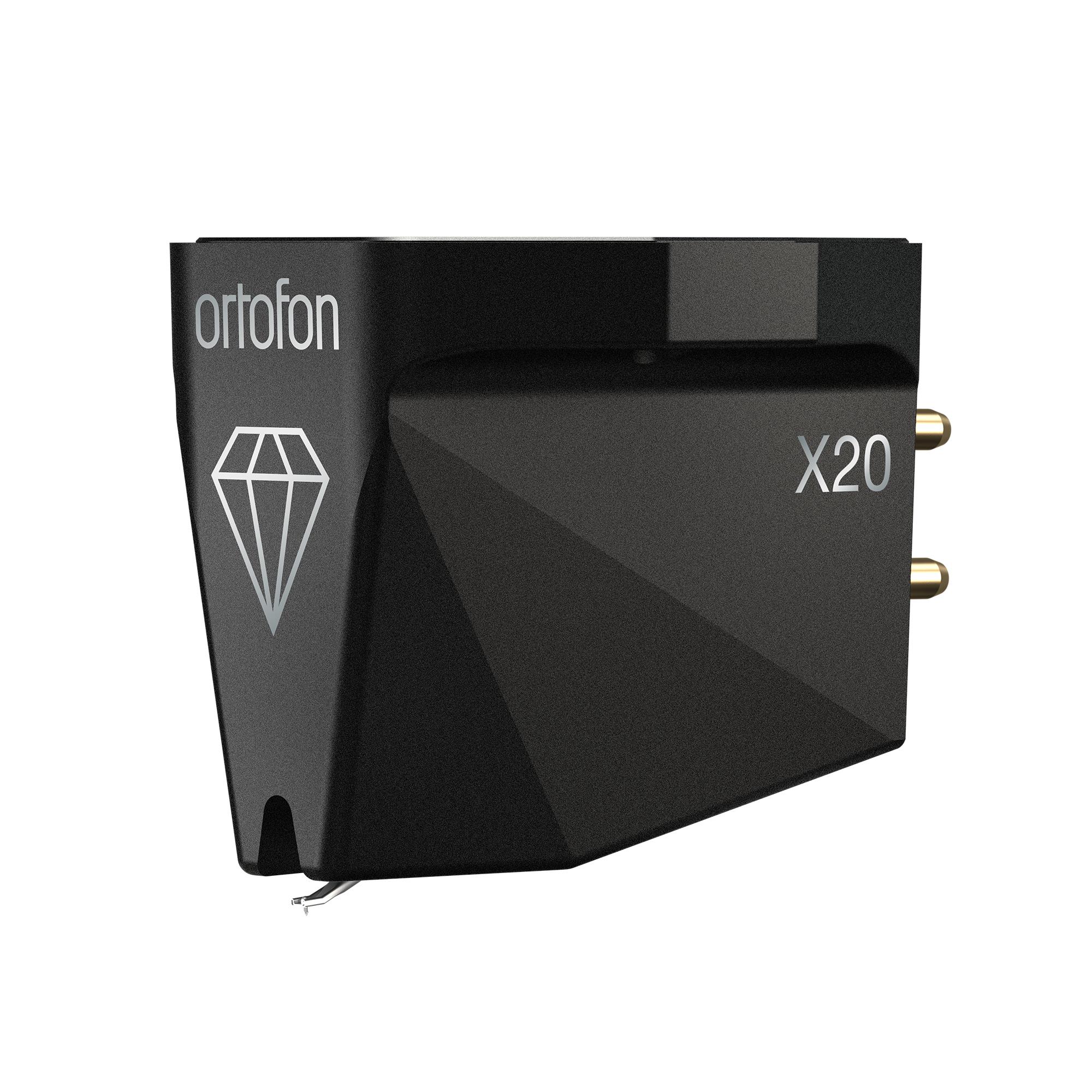

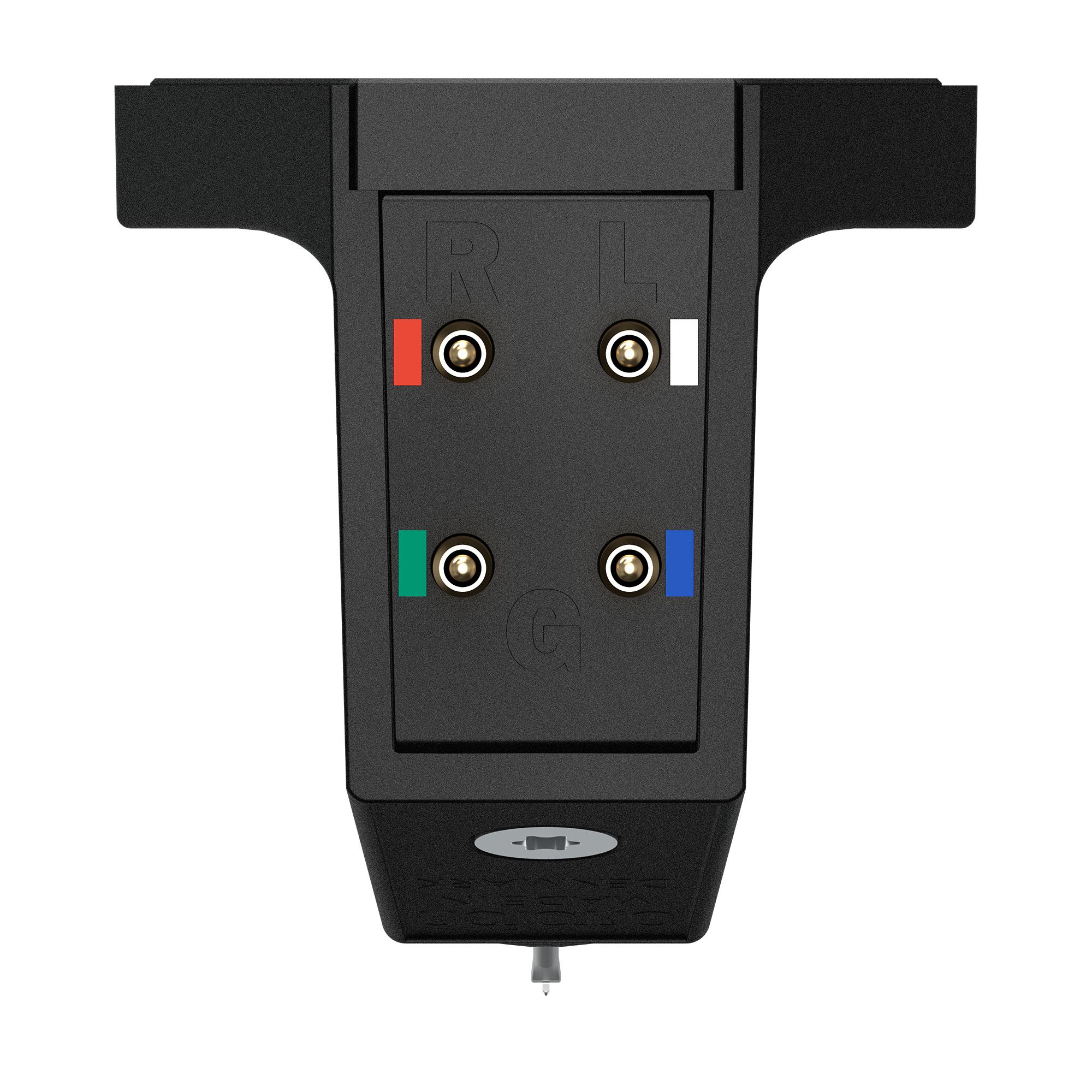

Ortofon MC X20
M/C Cartridge

New Product
Interest Free Credit Available
£429.00
FREE Home Delivery
Out of Stock Online
Check availability in our stores or order now for next shipment

Ortofon MC X20 M/C Cartridge

Uncover New Dimensions

Go deeper into your music with the MC X20. Featuring a nude elliptical diamond stylus, it reveals greater depth and definition, uncovering the full character of each track. Rediscover your favorite records with fresh excitement and vivid precision.

A New Benchmark in Analog Perfection

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

Ortofon MC X10 MC Cartridge

Exceptional Signal Clarity

Pure Silver Coil System

All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

Ortofon MC X10 MC Cartridge

Maximum Magnetic Efficiency

Magnet system

The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Ortofon MC X10 MC Cartridge

Precision Engineering for Unmatched Stability

Custom-Developed Rubber Dampers

In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

Ortofon MC X10 MC Cartridge

MIM-Molded Honeycomb-Structured Core

Experience the depth. Hear every detail.

At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.

After molding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.

Modern Elegance with Distinctive Design

The Shape of Sound

The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.

Ortofon MC X10 MC Cartridge

Specifications

Channel balance at 1 kHz0.5 dB
Output voltage at 1 kHz, 5cm/sec0.4 mV
Channel separation at 1 kHz25 dB
Frequency response 20 Hz - 20 kHz+/-1 dB
Compliance, dynamic, lateral15 µm/mN
Cantilever materialAluminium
Stylus typeNude Elliptical
Stylus tip radiusr/R 8/18 µm
Stylus suspensionsOrtofon exclusive
Coil systemQuad coils
Tracking force, recommended2.0 grams
Internal impedance, DC resistance6 Ohms
Coil wire materialHigh-purity silver
Cartridge weight8.6 grams
Recommended load resistance> 50 Ohms
