Specifications | |
| WHAT'S IN THE BOX | AC Cord Batteries for remote control Foot HDMI Cable Reference Guide Remote Control Wall mounting bracket Wall mounting template Warranty Card |

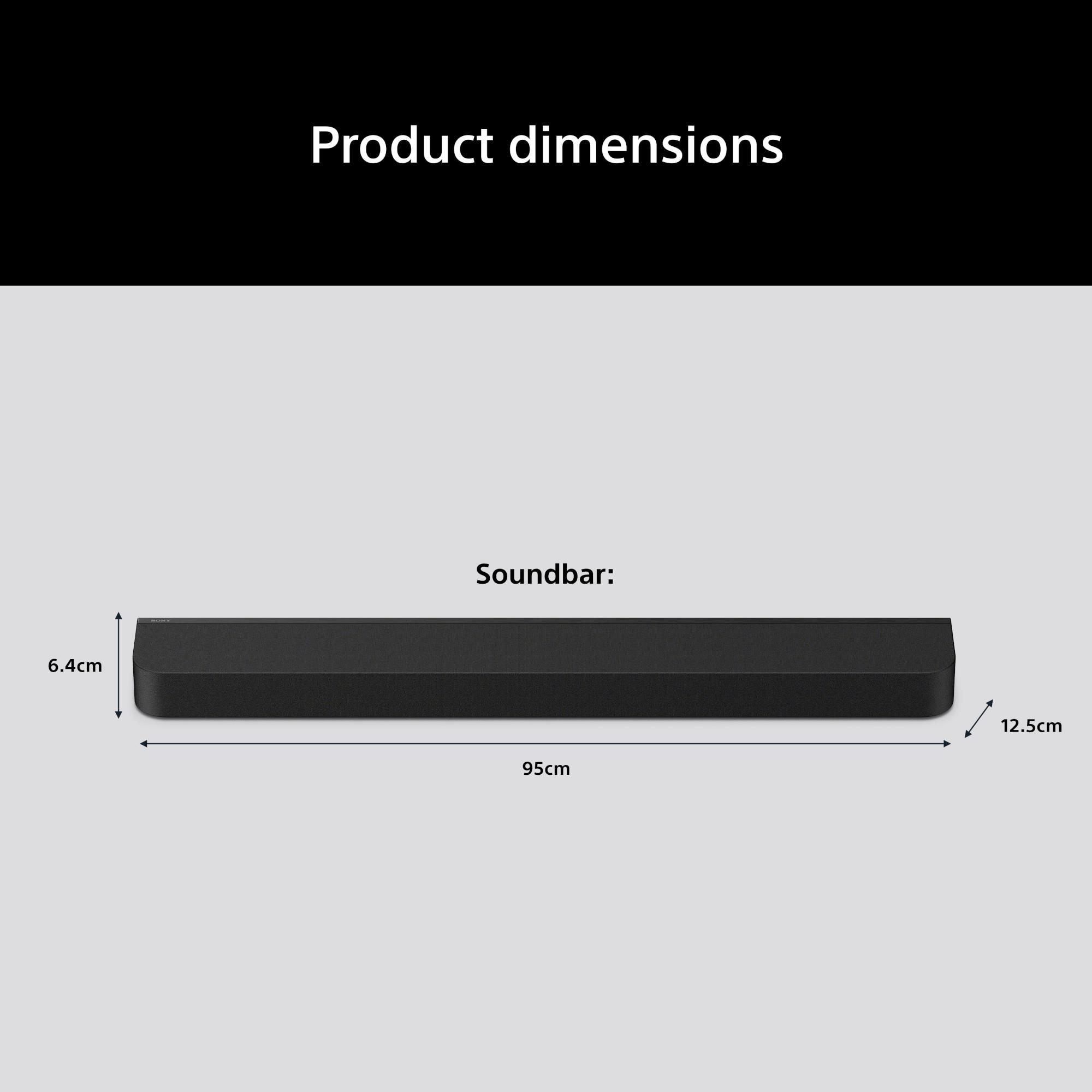

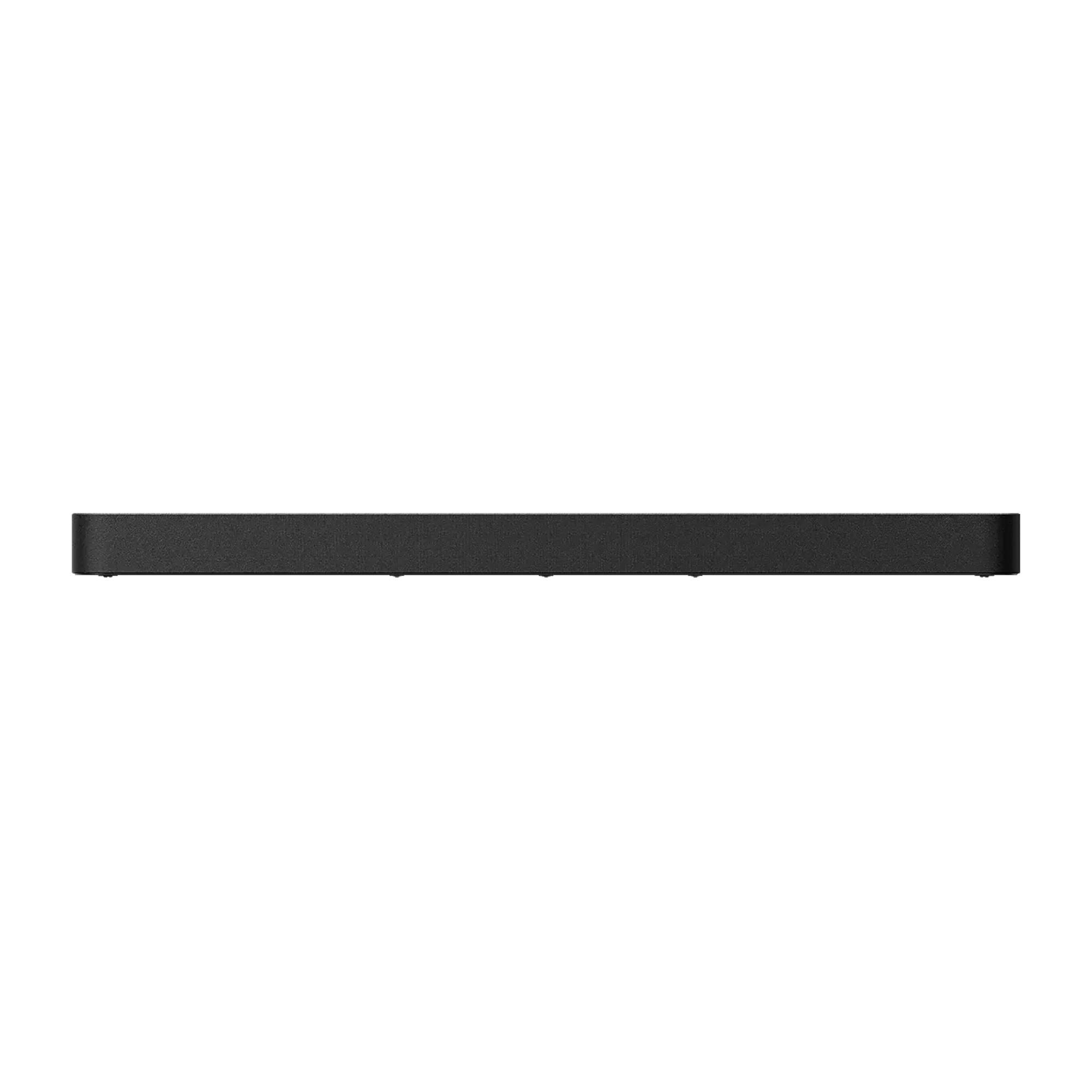

| MAIN UNIT SIZE - BODY ONLY (W x H x D) | 950 x 64 x 125 mm |
| MAIN UNIT WEIGHT - BODY ONLY | 4.6 kg |
| Amplifier Type | Digital Amplifier,S-Master |
| Amplifier Channels | 9 ch |
| Wi-Fi® | Yes |
| IEEE802.11 version | a / b / g / n / ac / ax |
| BLUETOOTH® VERSION | 6.0 |
| BLUETOOTH® COMPATIBLE PROFILES | A2DP,AVRCP |
| BLUETOOTH® SUPPORTED CODECS | SBC,AAC,LDAC |

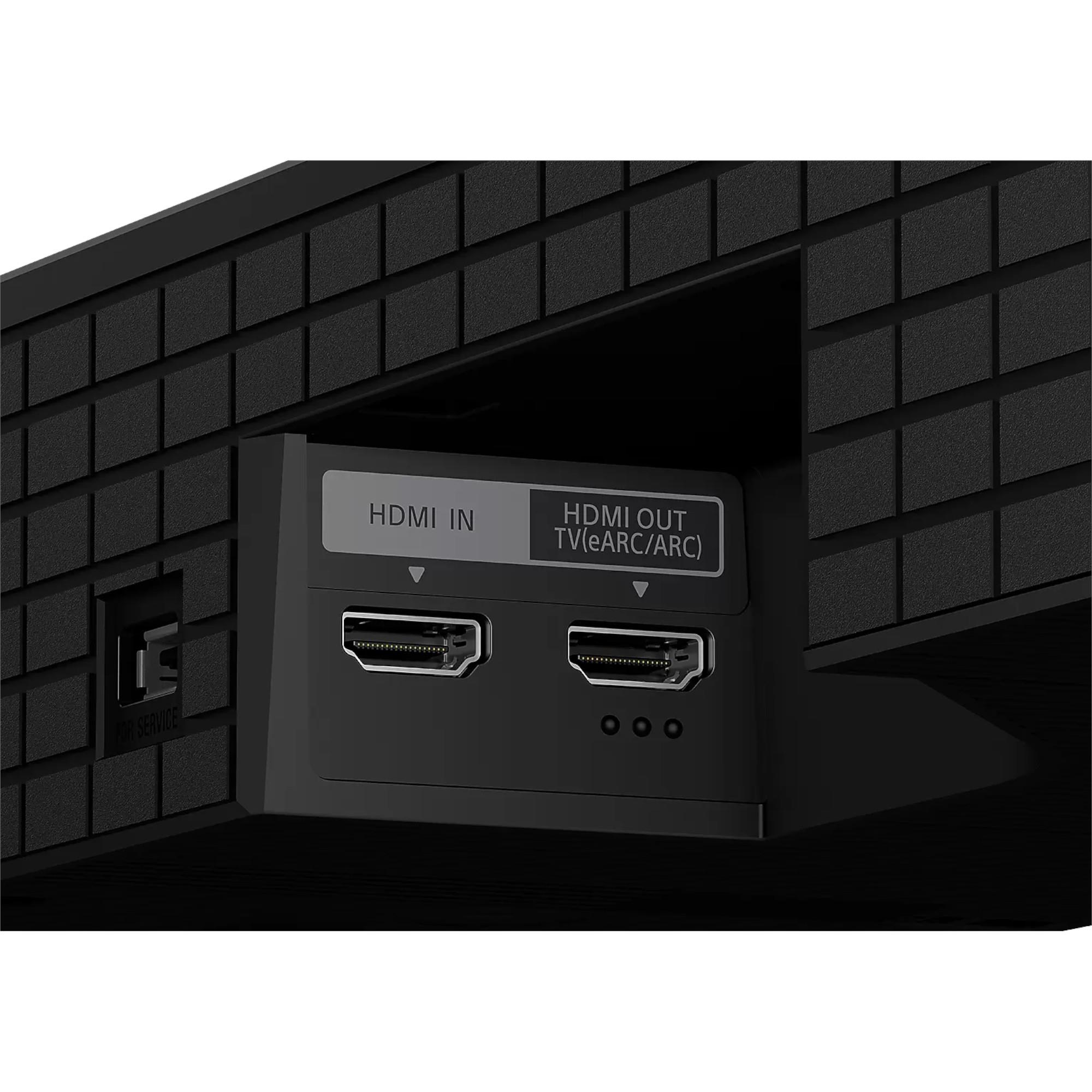

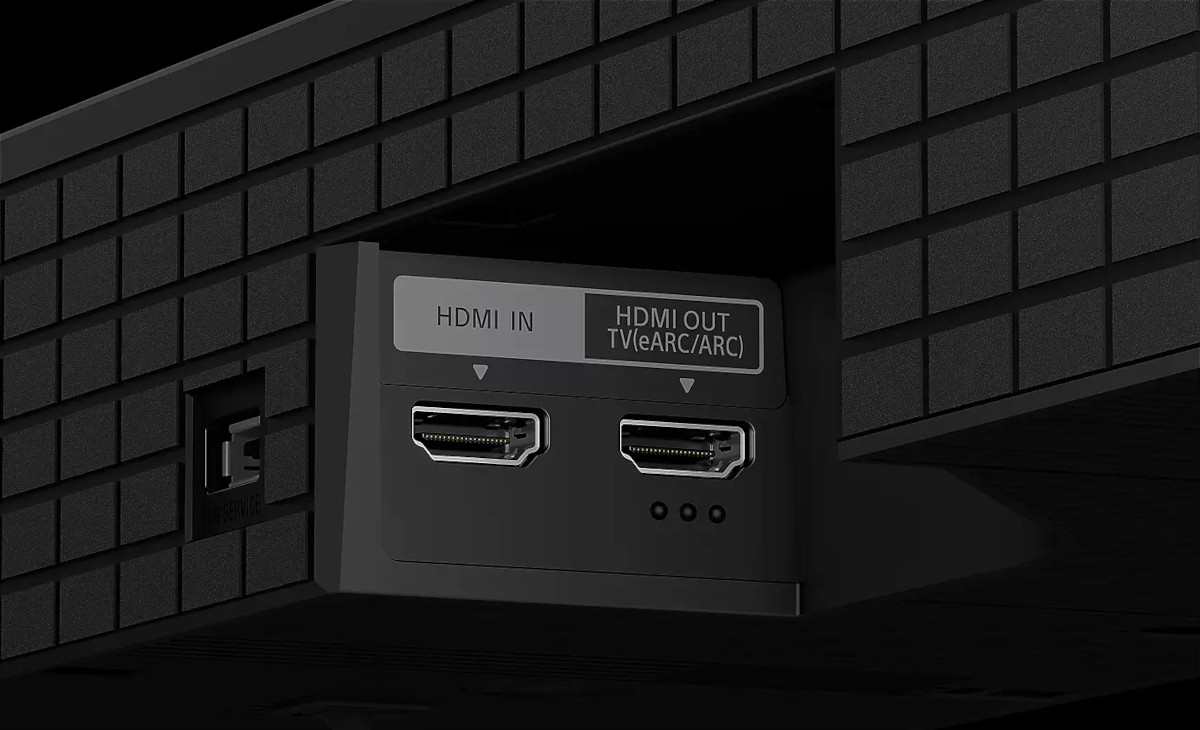

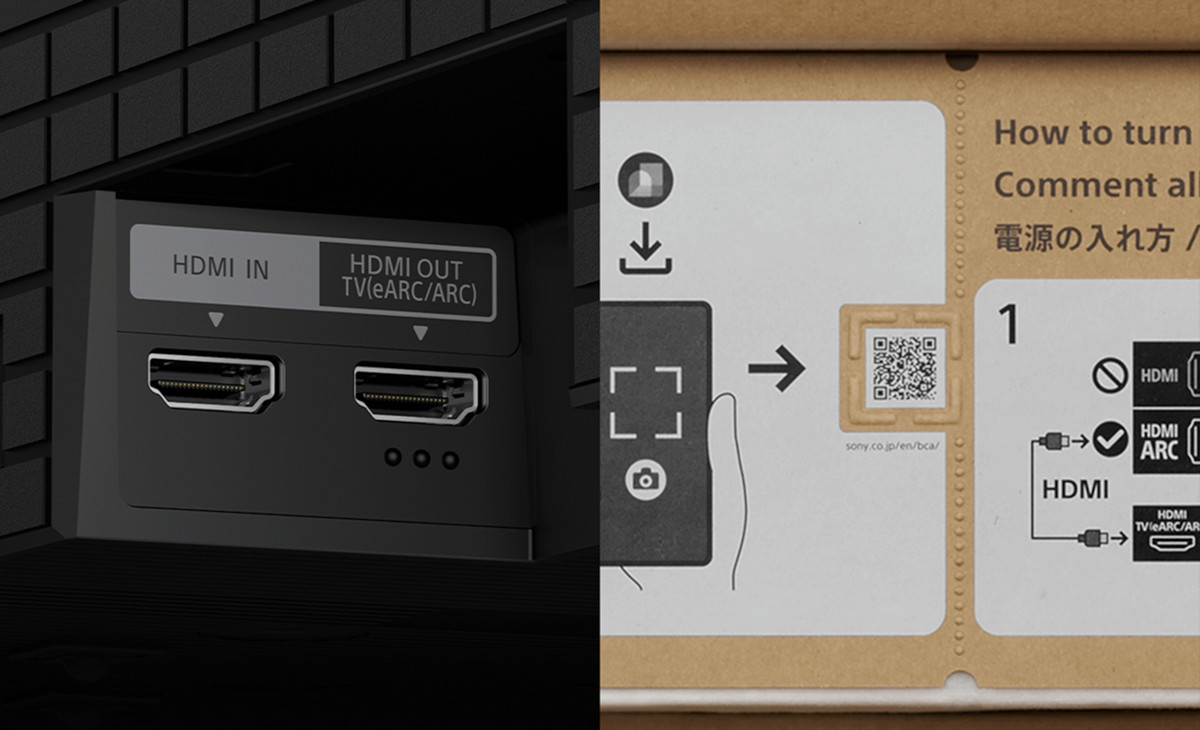

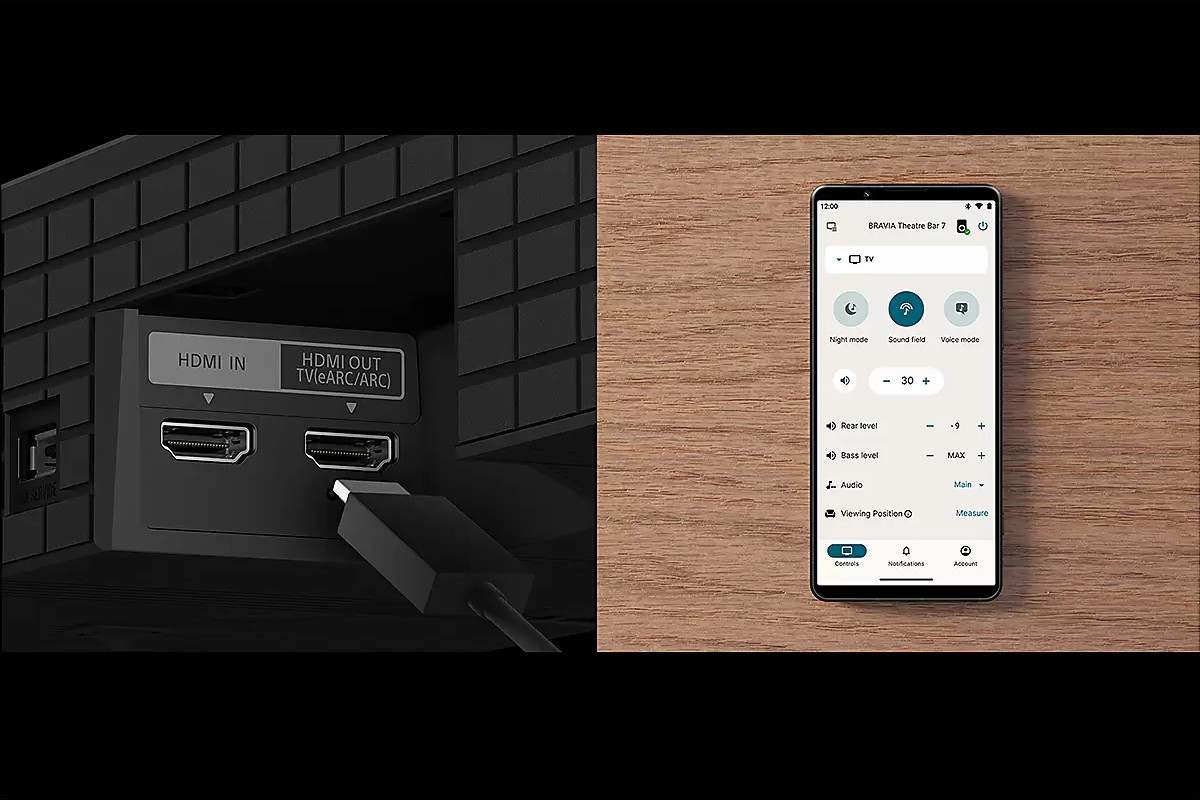

| Number of Input/Output | 1 / 1 (eARC / ARC) |
| eARC | Yes |
| 4K/60p/YUV4:4:4 | Yes |
| HDR | Yes |
| Dolby Vision™ Compatible | Yes |
| HLG (hybrid log gamma) | Yes |
| HDCP2.2 | Yes |
| VRR (Variable Refresh Rate) | Yes |
| ALLM (Auto Low Latency Mode) | Yes |
| DSC (DISPLAY STREAM COMPRESSION) | Yes |
| SBTM (SOURCE-BASED TONE MAPPING) | Yes |
| BRAVIA Sync | Yes |
| HDMI CEC | Yes |
| HDMI input | Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Dual mono,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,IMAX ENHANCED,LPCM: 2ch / 5.1ch / 7.1ch |
| HDMI eARC | Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Atmos,Dolby Dual mono,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,IMAX ENHANCED,LPCM: 2ch / 5.1ch / 7.1ch |
| BLUETOOTH® COMMUNICATION (RECEIVER) | AAC,SBC,LDAC |
| Sound Mode | Sound Field |
| Sound Effect | Night Mode,Voice Mode |

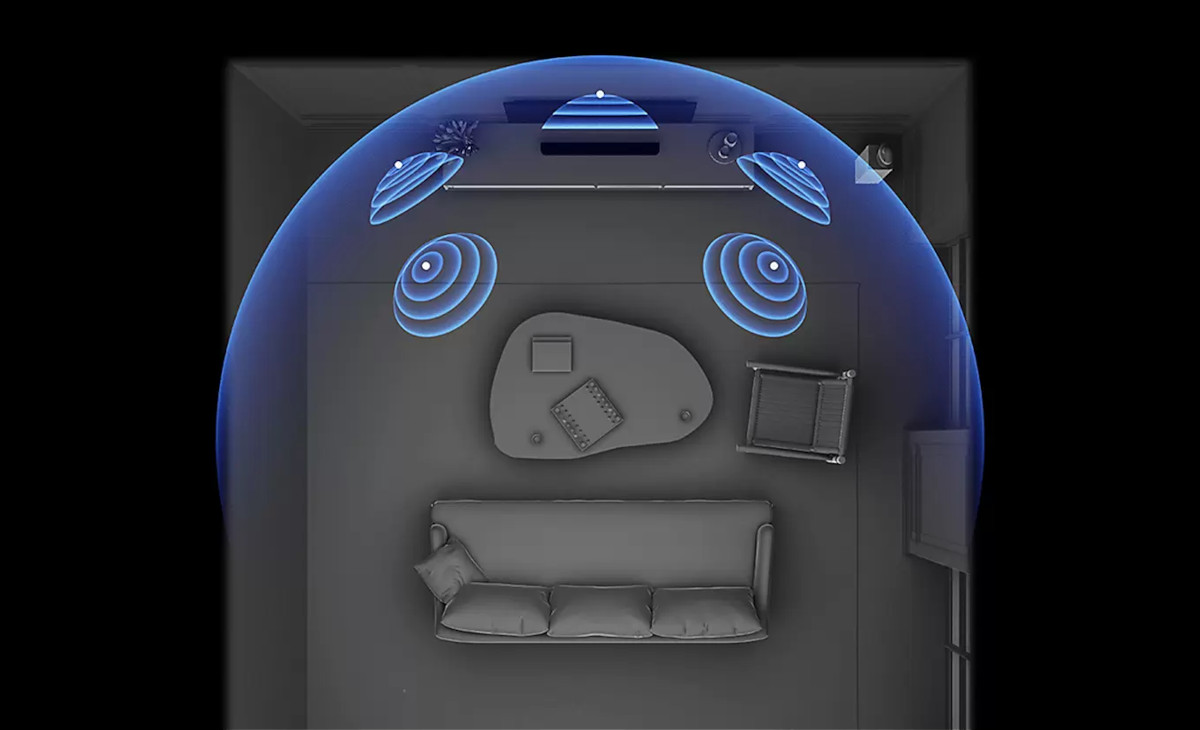

| Virtual Surround Technology | 360 Spatial Sound Mapping |
| SOUND ENHANCEMENT TECHNOLOGY | DSEE Ultimate |

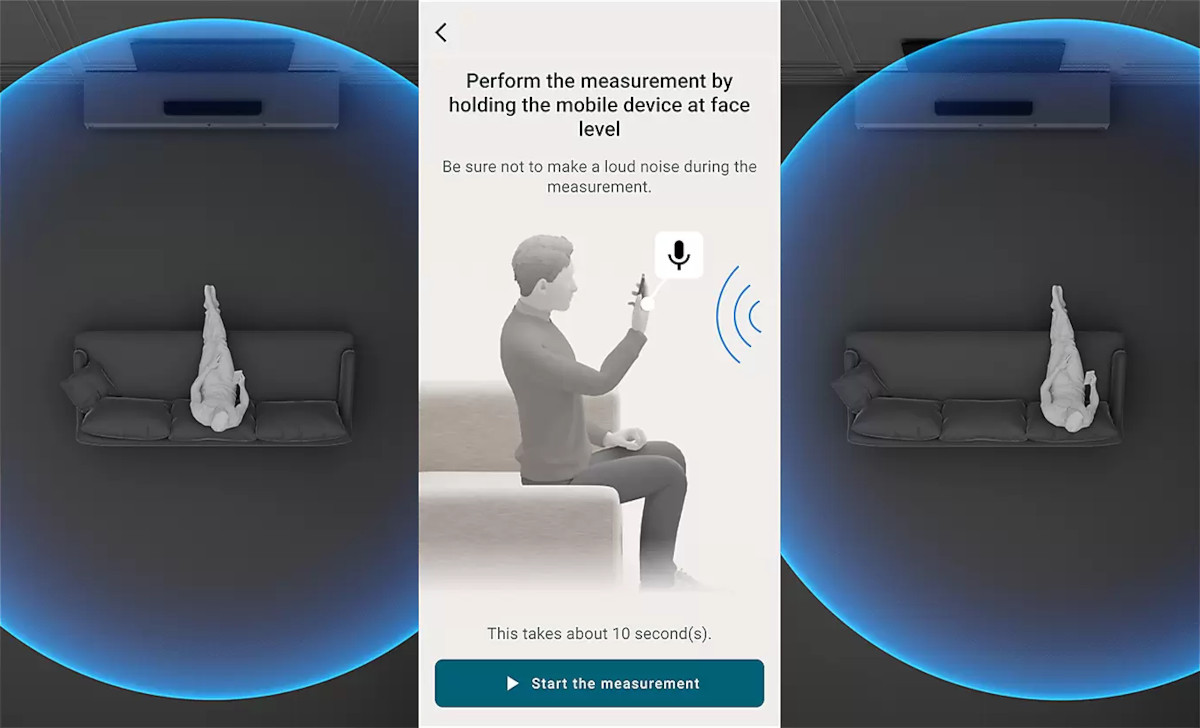

| Calibration | Yes |

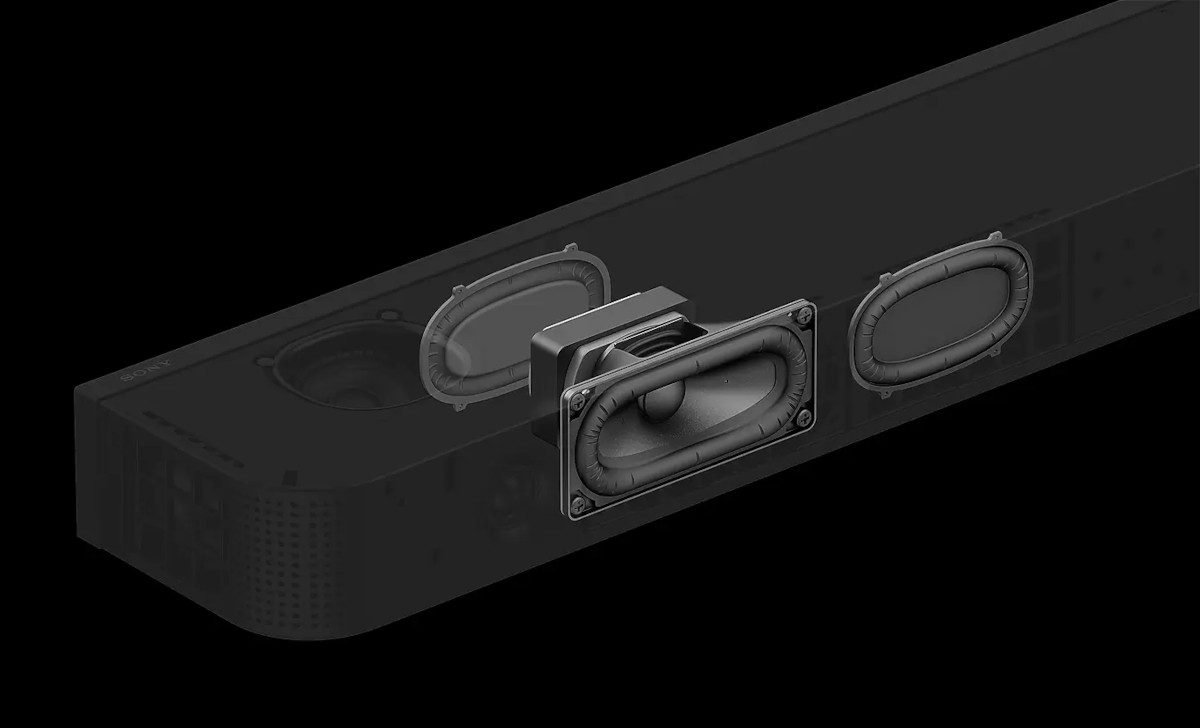

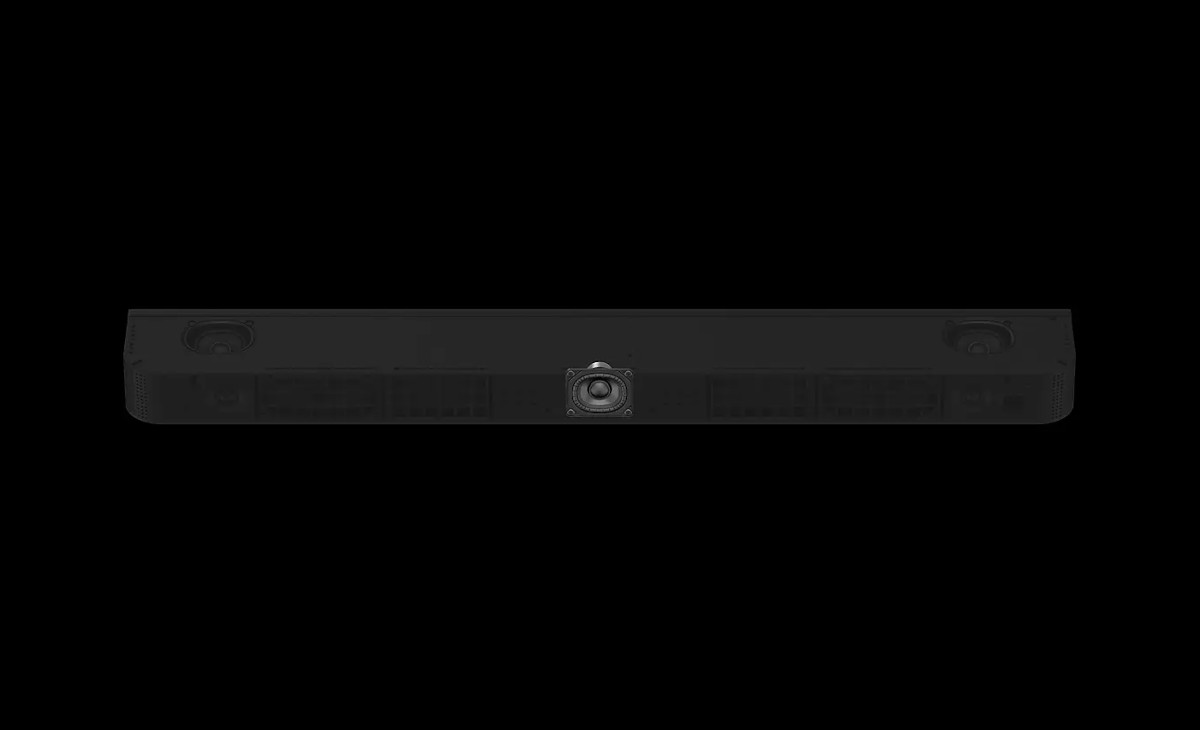

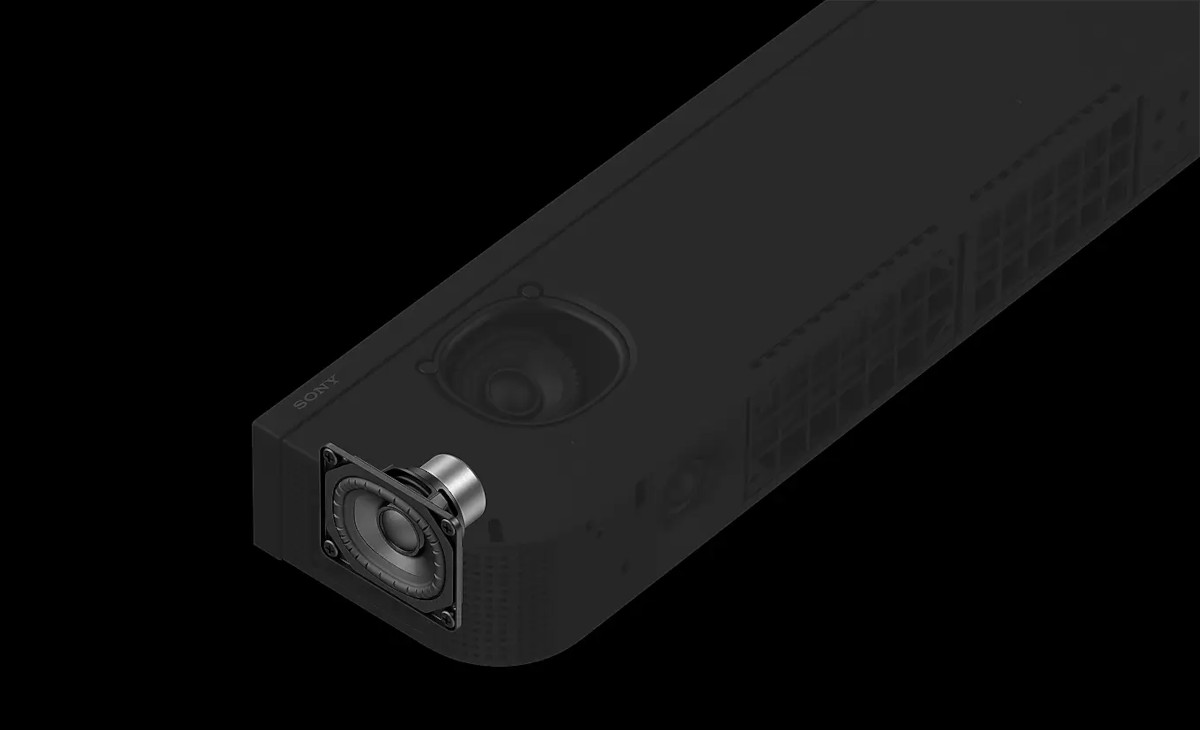

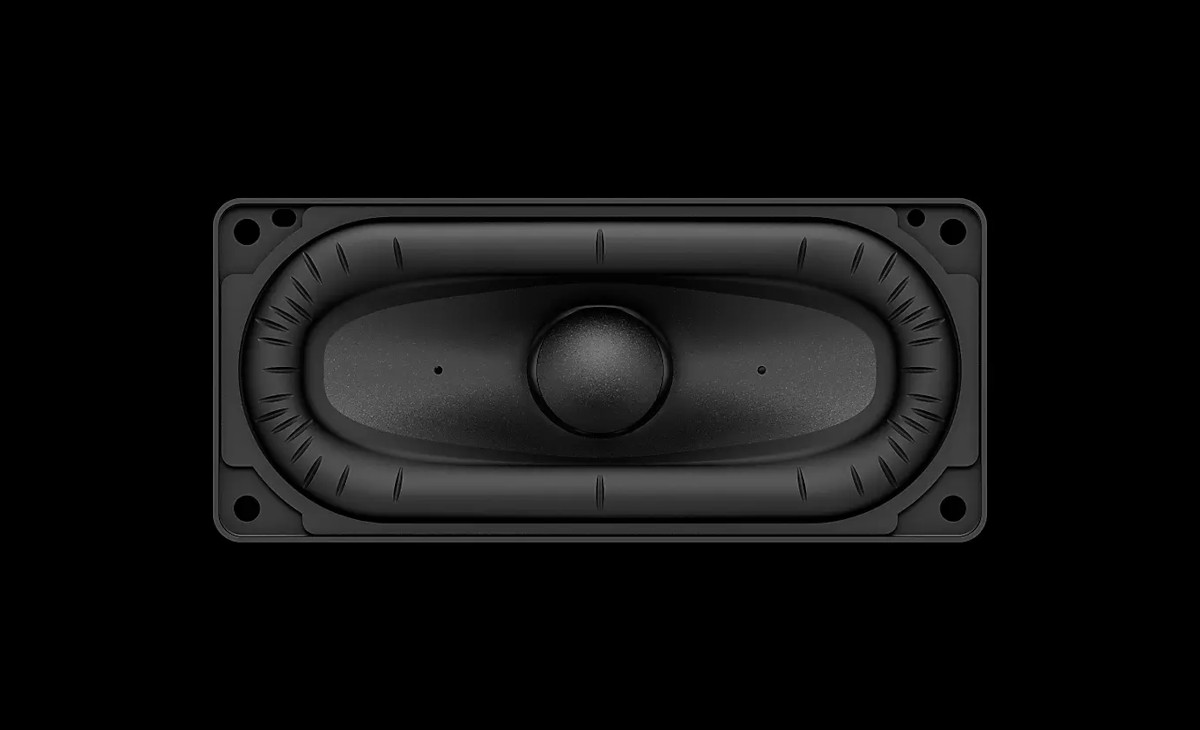

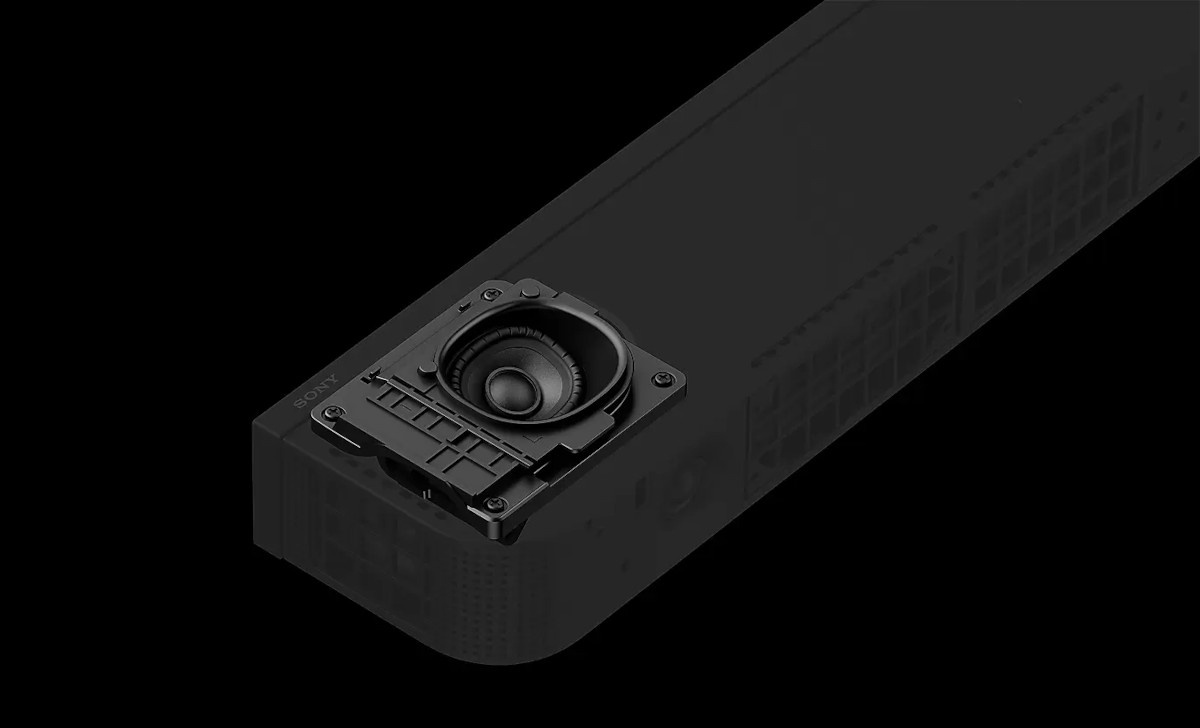

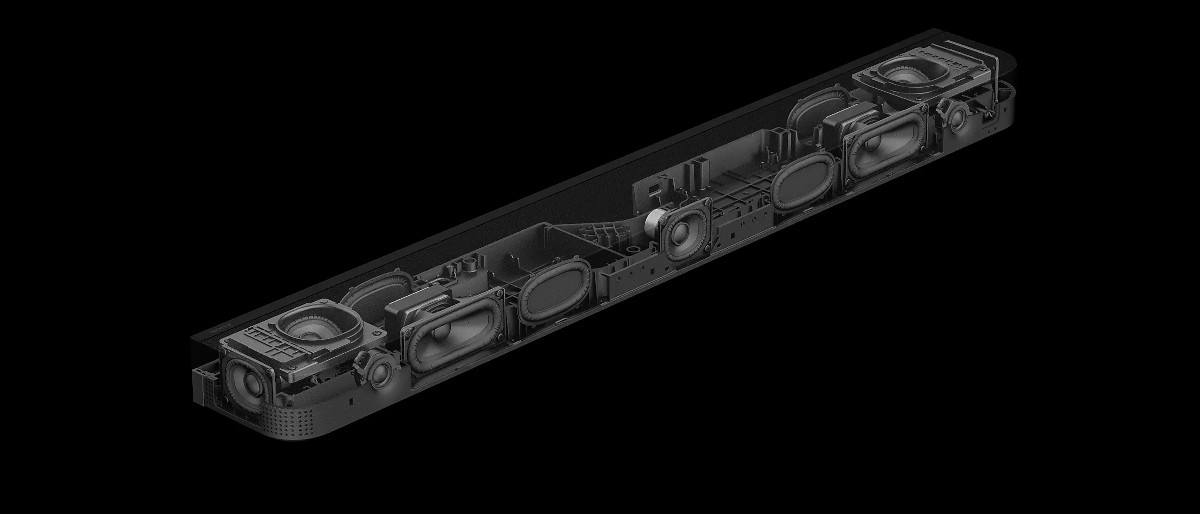

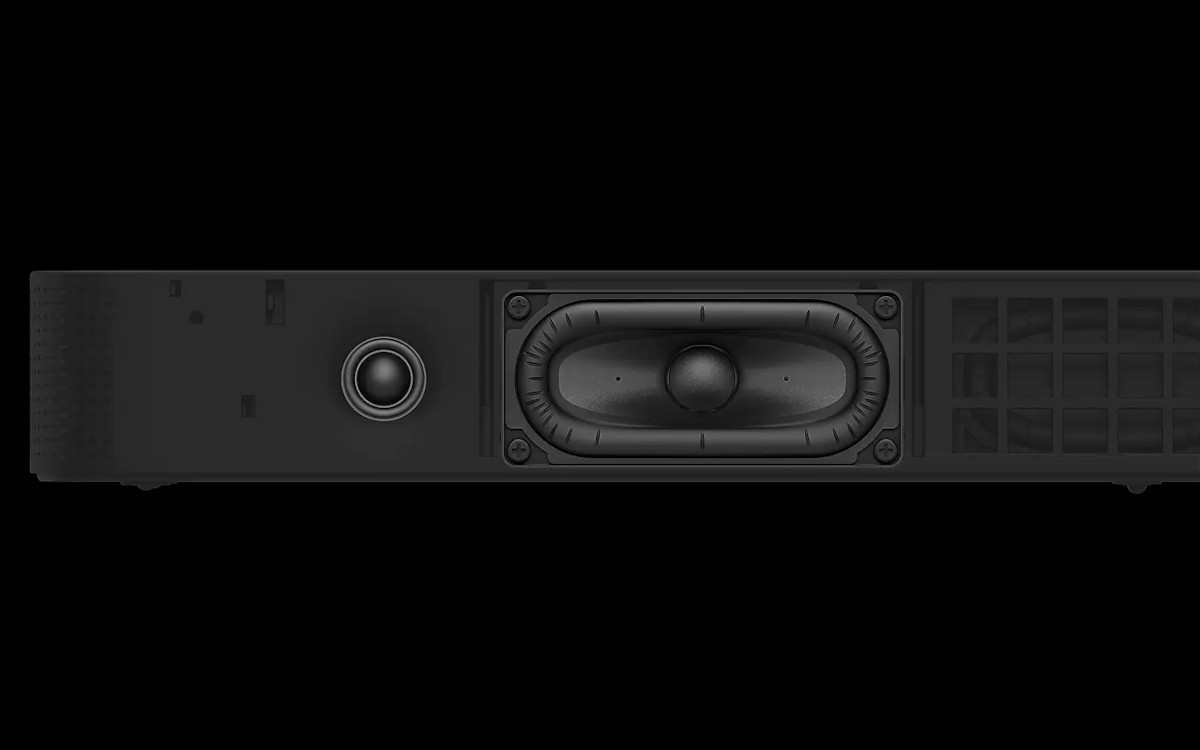

| Speaker Structure | 5.0.2 ch (9 Speaker Units) |

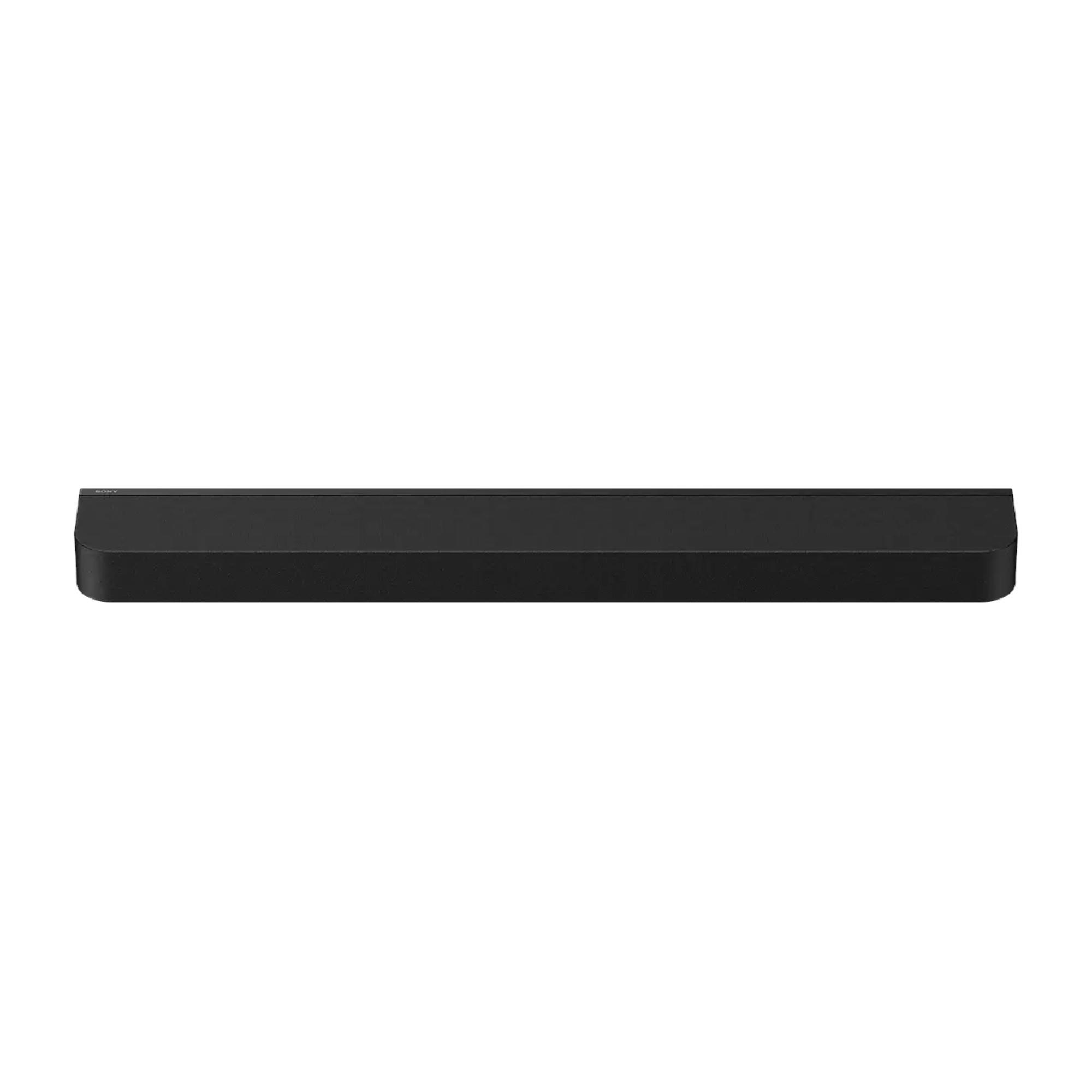

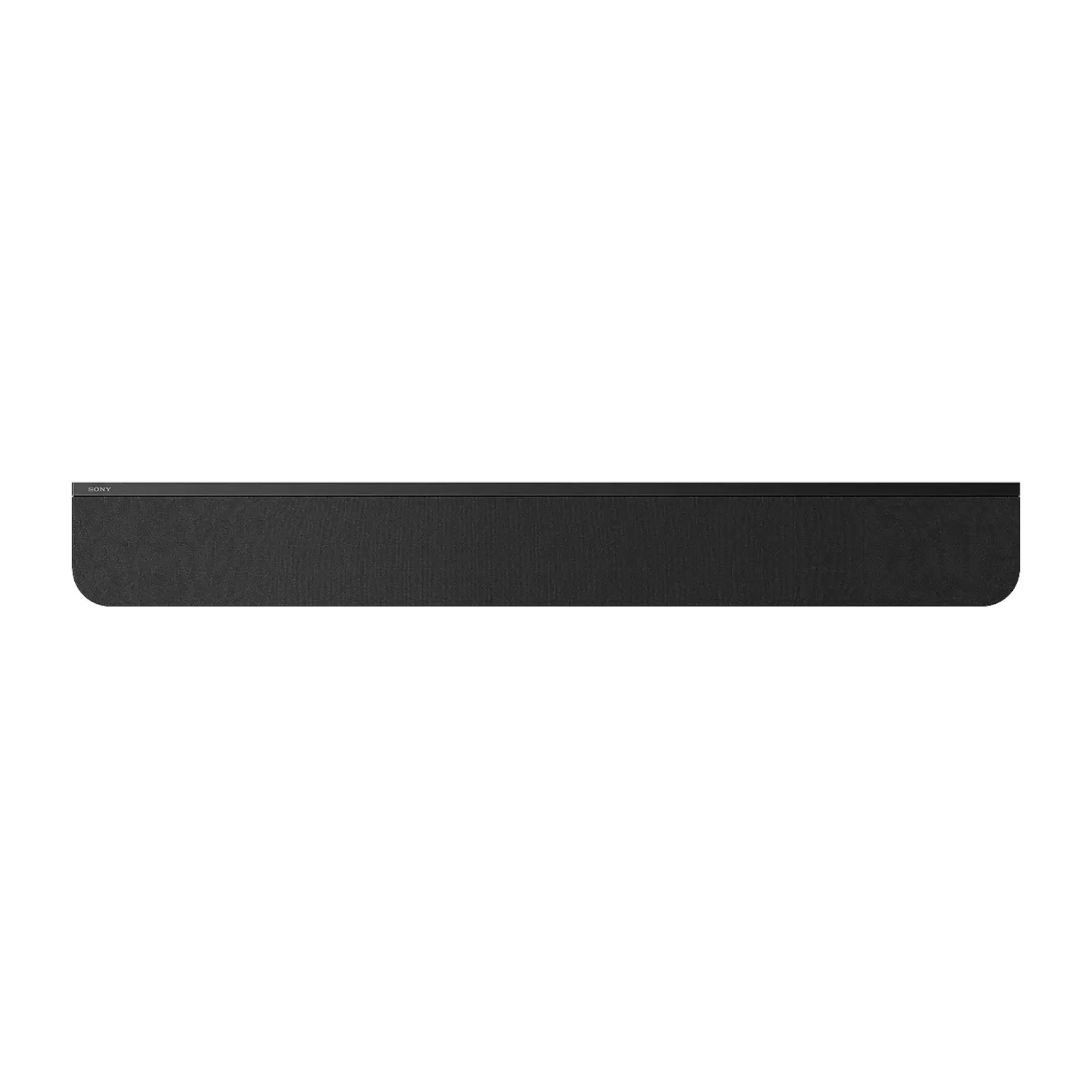

| bar speaker | HT-A7100 |
| Network Function | Spotify Connect,AirPlay |

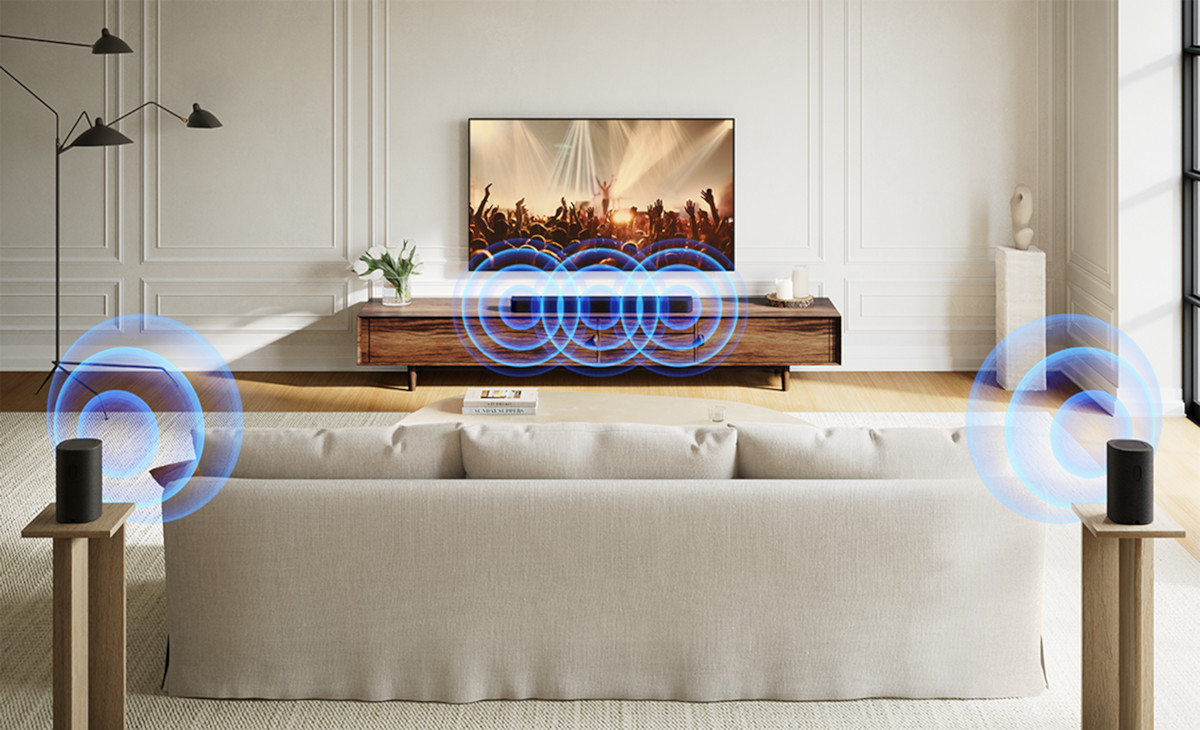

| Wireless Surround (with optional wireless speakers) | Yes |
| DUAL SUBWOOFER | Yes (w Option Woofer) |
| SONY | BRAVIA CONNECT | Yes |

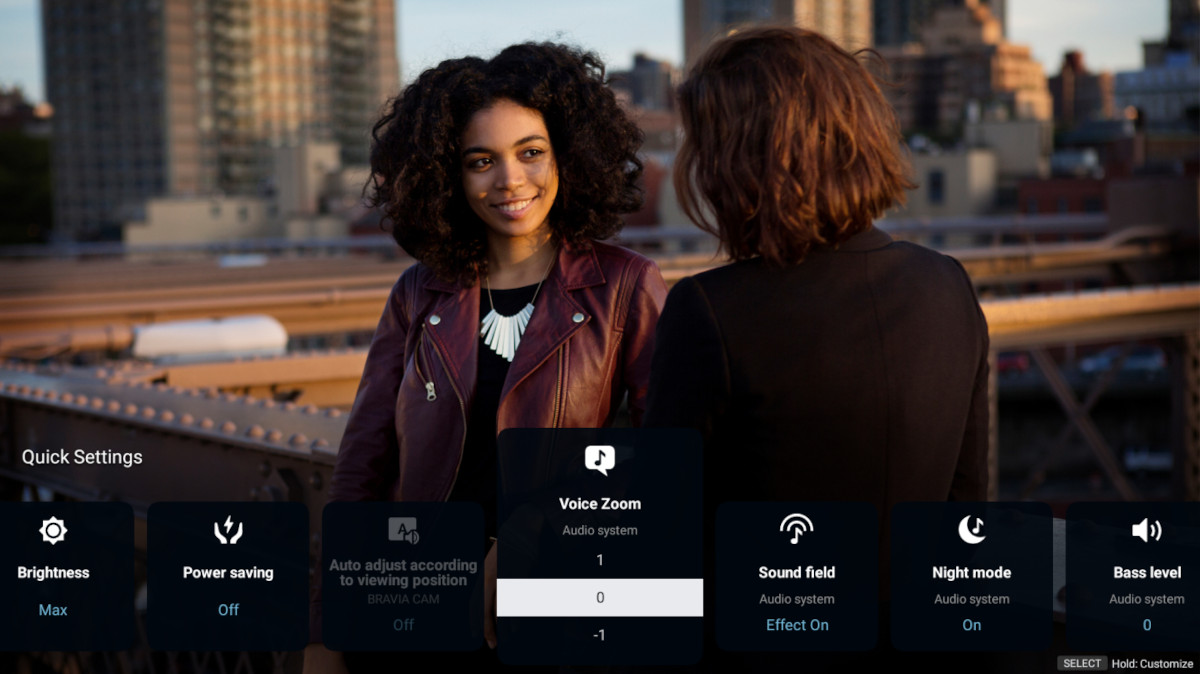

| FUNCTION WITH BRAVIA | Voice Zoom,Quick Settings |
| POWER CONSUMPTION *APPROX | 52 W |
| Wall-mountable | Yes |
| Power Consumption (Off Mode) | Not available |
| POWER CONSUMPTION (STANDBY MODE / LOW POWER MODE) | 0.5 W |
| OFF MODE / STANDBY MODE / LOW POWER MODE ACTIVATED | After 20 minutes |
| Power Consumption (Network Standby Mode) – Terminals | 0.5 W (HDMI CEC) / 3.5 W (Bluetooth® function, Wi-Fi, all terminals and networks connected) *This product has a router function which can forward audio data via Wi-Fi to another Sony audio product. |
| Networked Standby Mode Activated – Terminals | After 20 minutes (HDMI CEC, Bluetooth® function, Wi-Fi) |
| Wireless Network(s) On/Off Switch | ·Press INPUT, Volume -, Volume +, and INPUT in that order on the supplied remote control to turn off the Bluetooth® and Wireless LAN functions. ·Press INPUT, Volume -, Volume +, and INPUT again in that order on the supplied remote control to turn on the Bluetooth® and Wireless LAN functions. |
