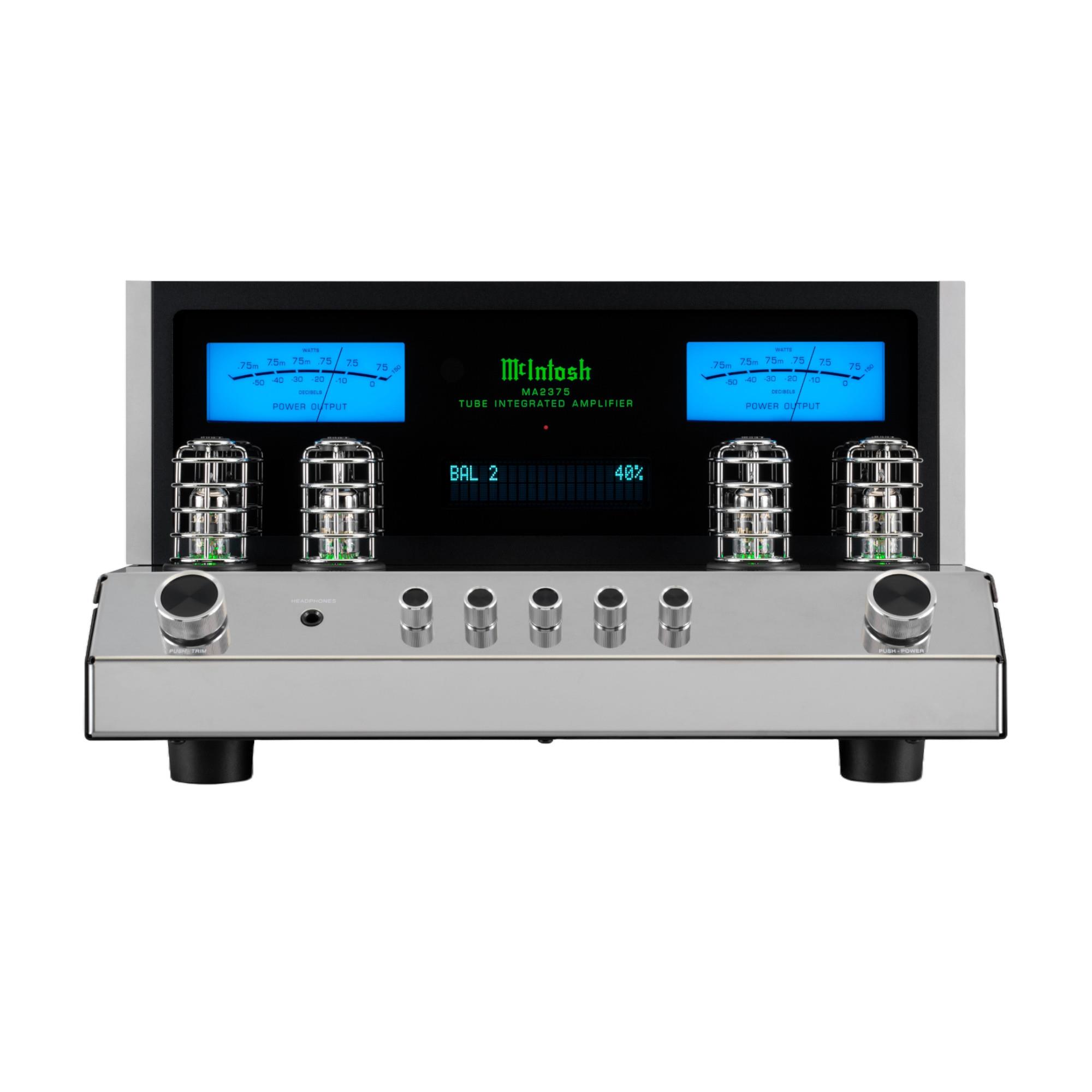

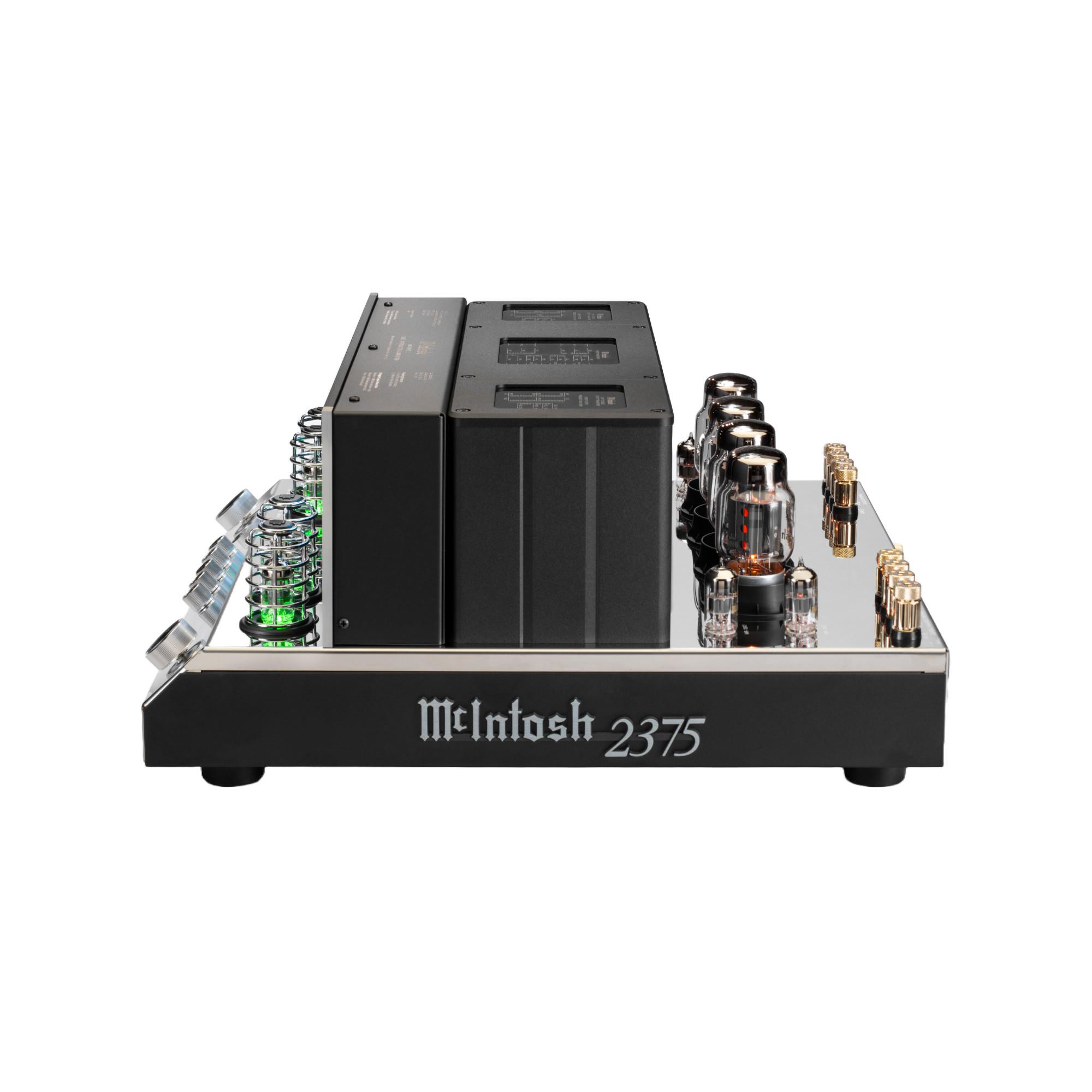

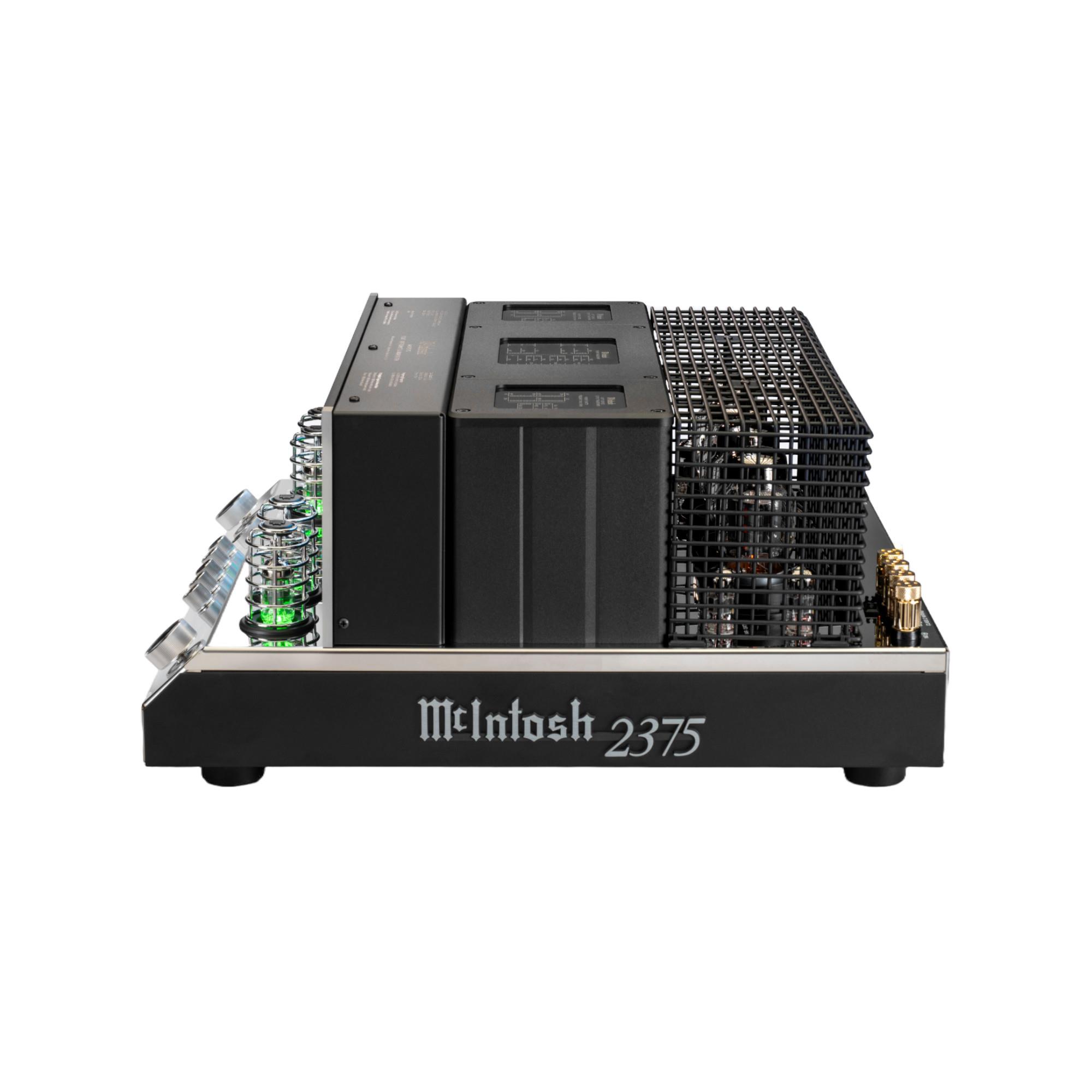

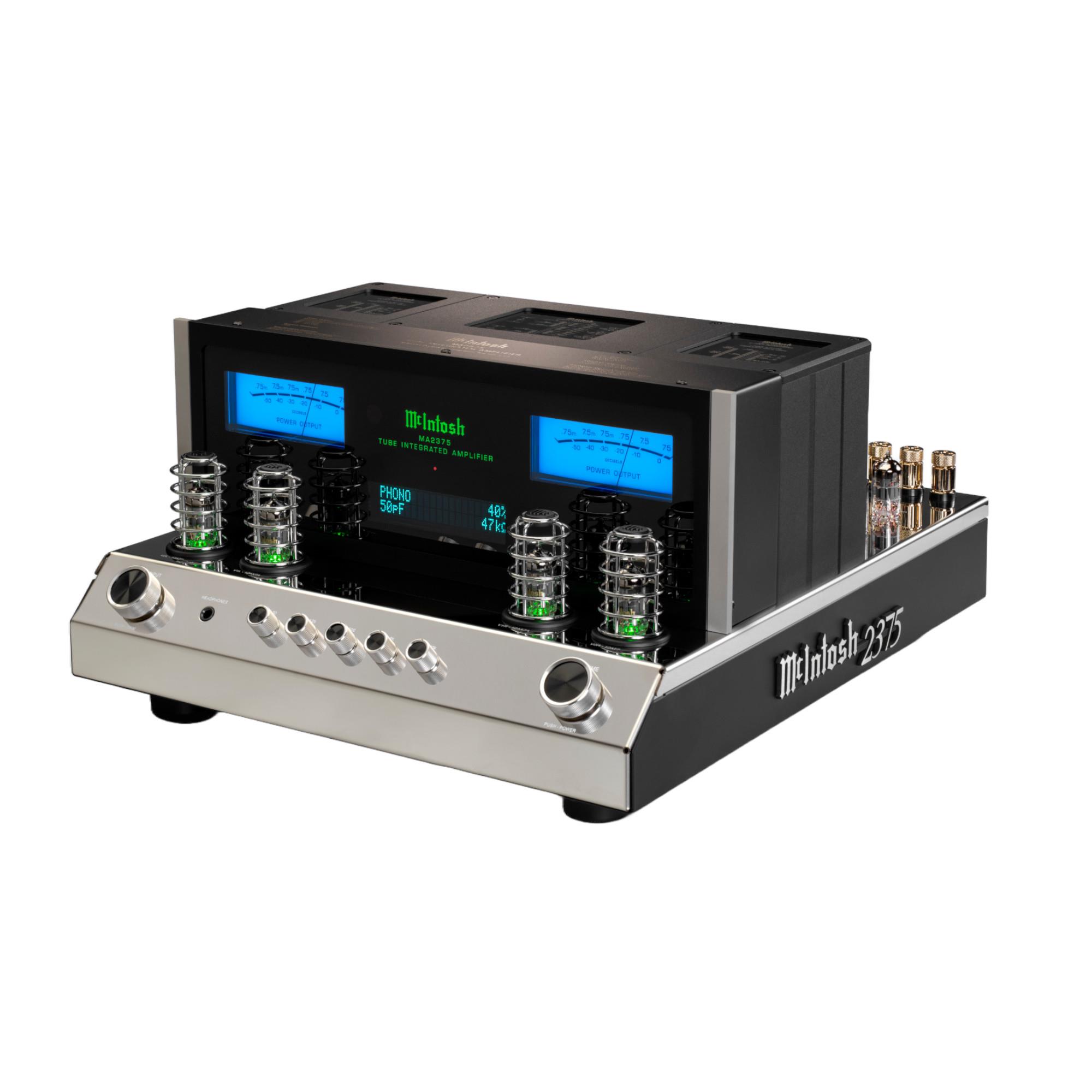

McIntosh MA2375
Valve Amplifier

New Product
6YG-RBS
£16,900.00

McIntosh MA2375 Valve Amplifier

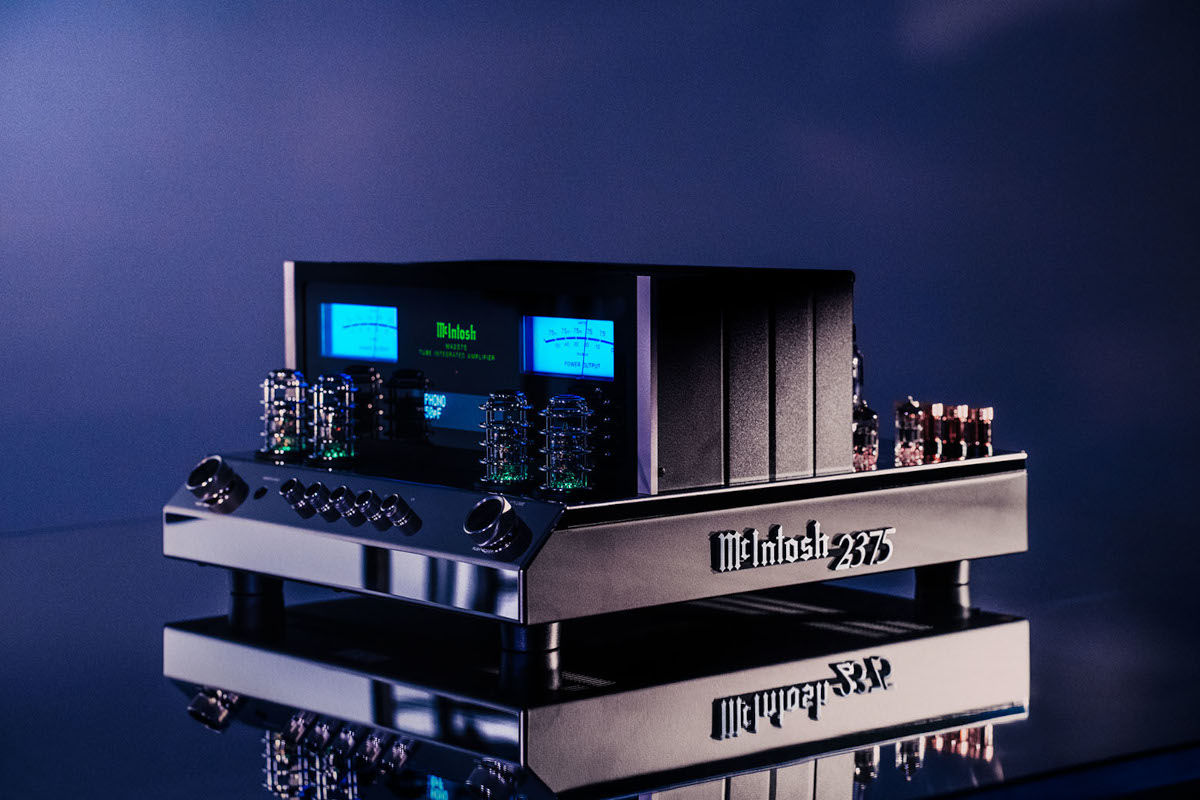

MA2375 2-Channel Vacuum Tube Integrated Amplifier

McIntosh's first vacuum tube integrated amplifier in over a decade, the MA2375 Vacuum Tube Integrated Amplifier is a statement of uncompromising artistry. Crafted for the music purist but refined for the modern listener, the MA2375 invites you to rediscover your music with amazing clarity and beauty. Every detail, from its polished stainless-steel chassis to the warm glow of its tubes, reflects the legacy of excellence and timeless design.

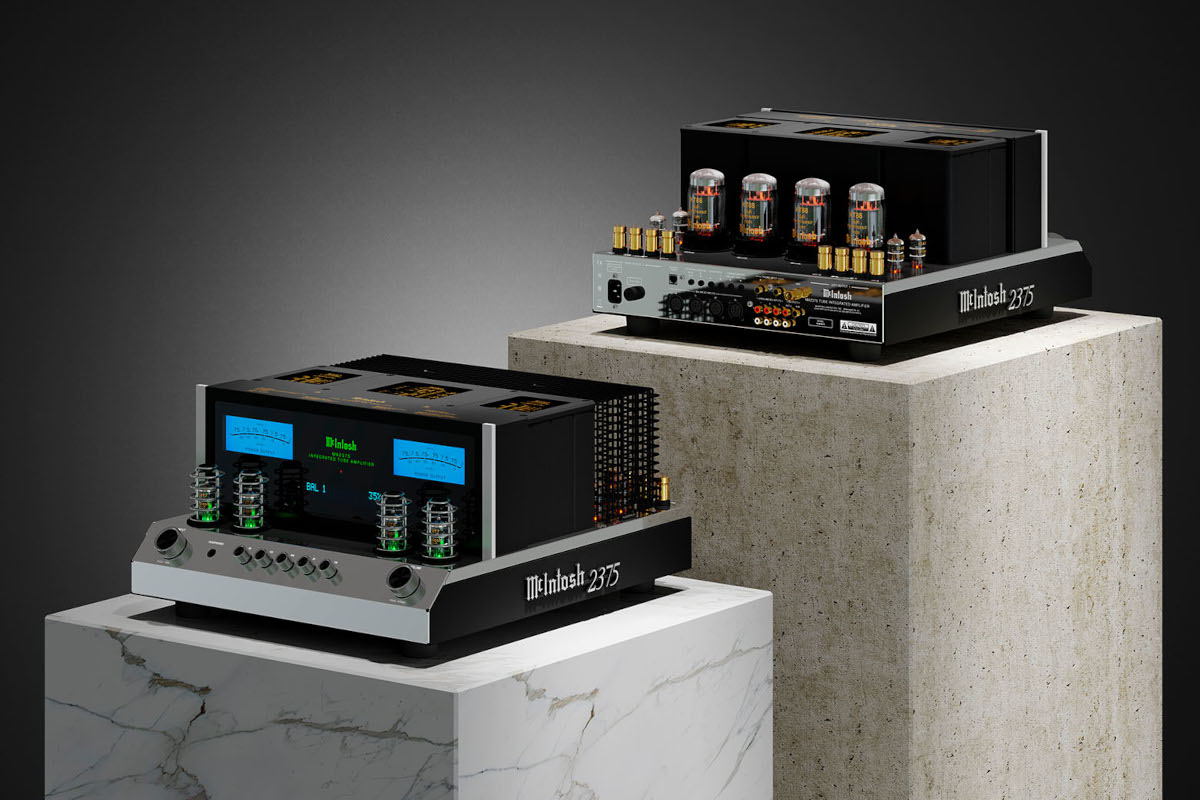

MA2375 2-Channel Vacuum Tube Integrated Amplifier

PURE TUBE ARTISTRY

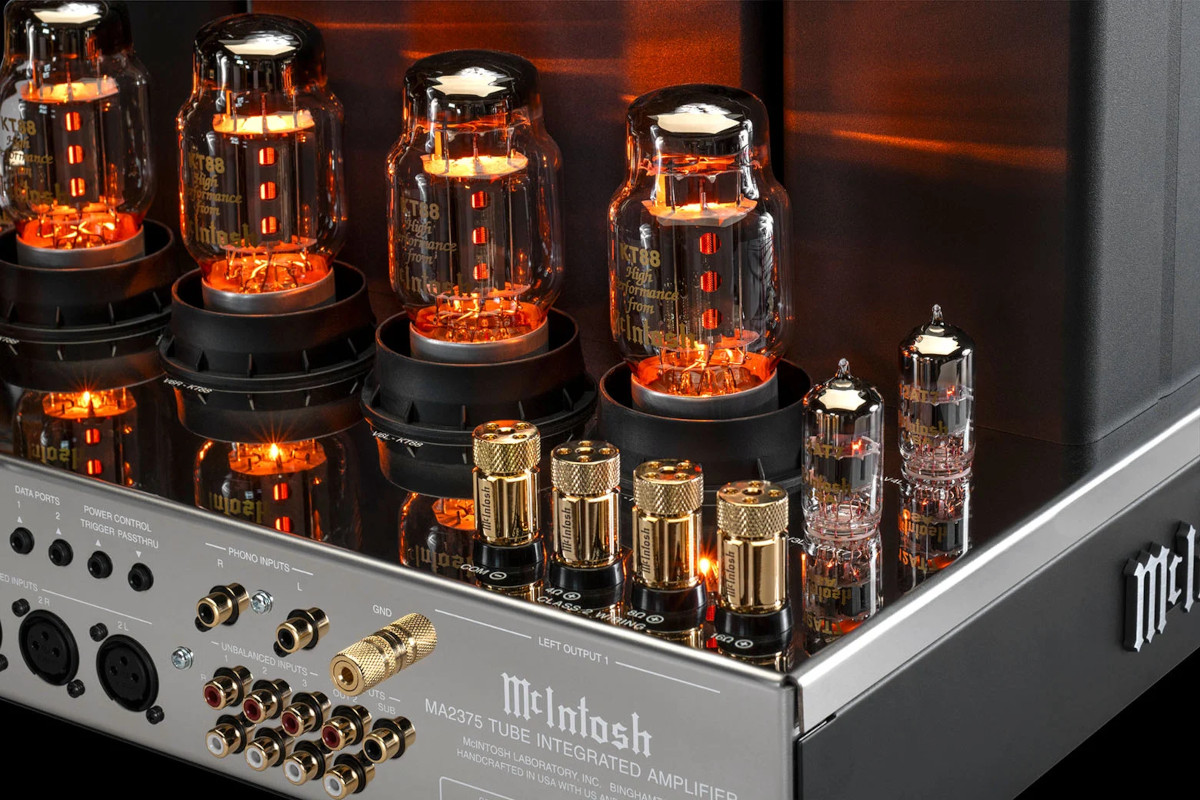

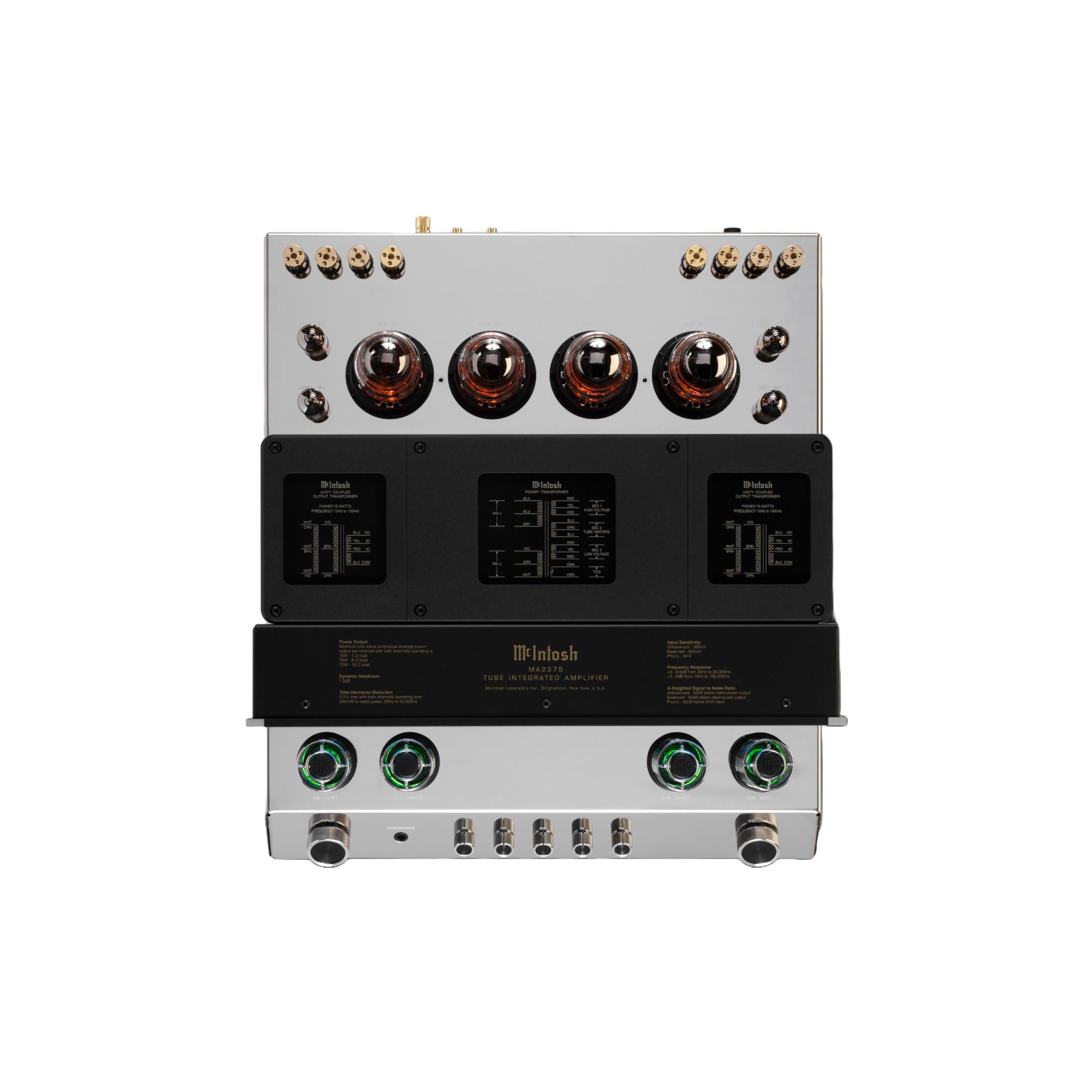

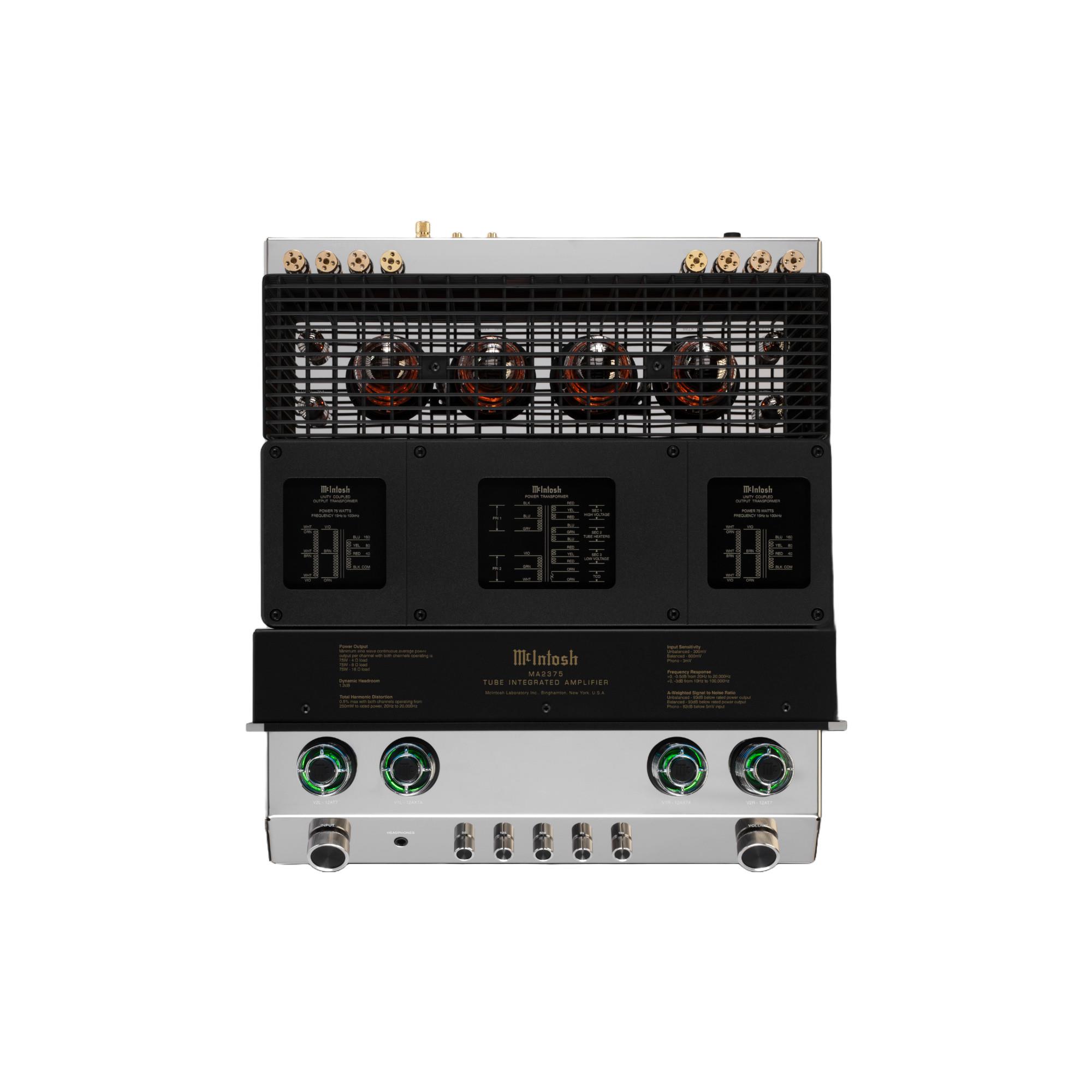

This all-analog masterpiece combines a vacuum tube preamplifier with a vacuum tube power amplifier in a single, elegantly designed unit. In the power amplifier section, four KT88 output tubes and four 12AT7 driver tubes deliver 75 watts per channel of effortless, low-distortion power. You will experience a rich, full-bodied sound through virtually any speakers thanks to Unity Coupled Circuit Output Transformers. The vacuum tube preamplifier portion is powered by two 12AX7A and two 12AT7 preamp tubes.

MA2375 2-Channel Vacuum Tube Integrated Amplifier

ICONIC STYLING BLENDED WITH MODERN PERFORMANCE

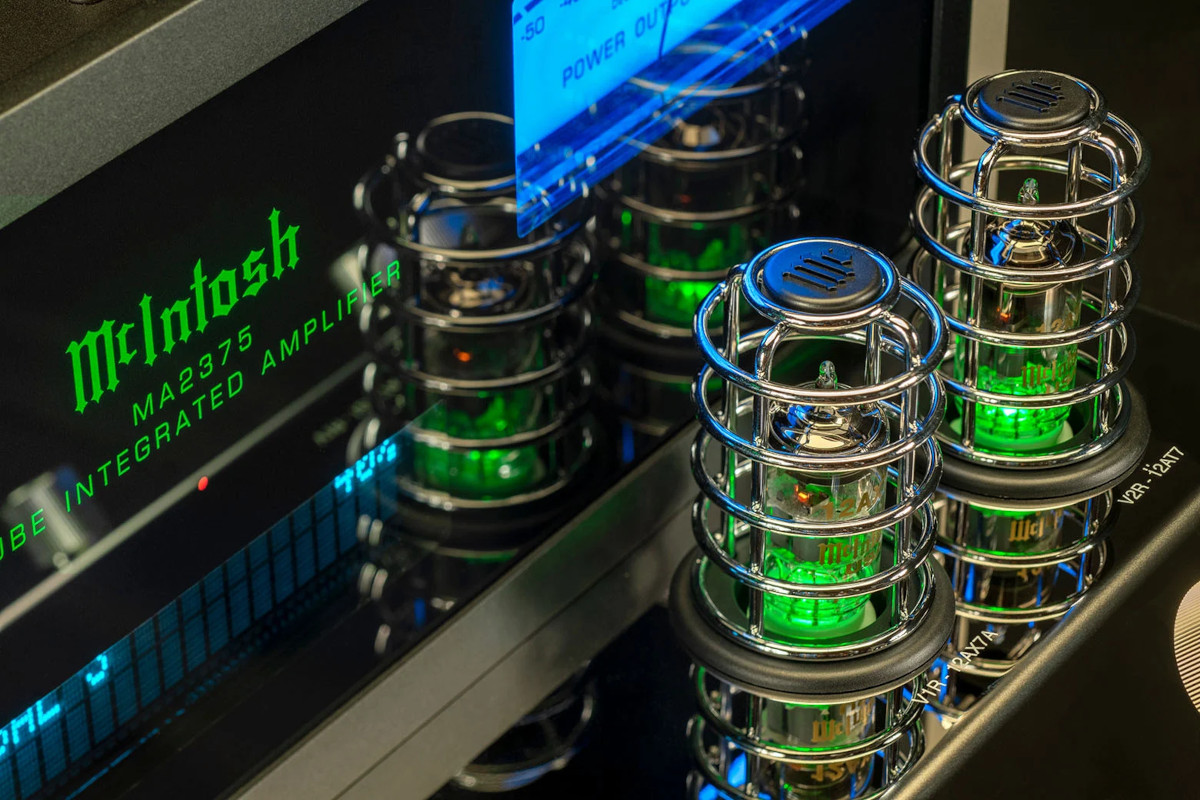

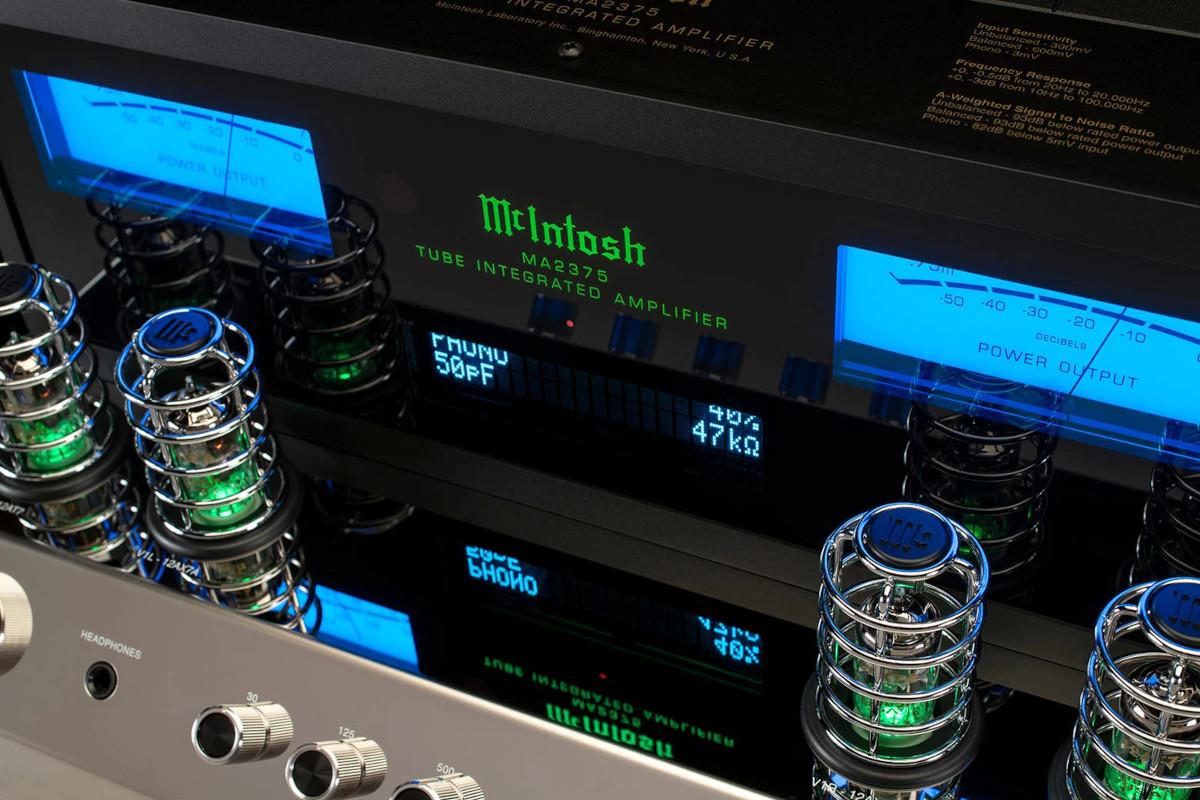

The MA2375 effortlessly blends timeless McIntosh design with cutting-edge performance. Dual McIntosh blue watt meters, a polished stainless-steel chassis, and the signature glow of vacuum tubes create an aesthetic as captivating as the sound. A 5-band analog equalizer offers personalized tonal shaping, while the High Drive headphone amplifier with Headphone Crossfeed Director (HXD®) adds dimensionality to private listening.

MA2375 2-Channel Vacuum Tube Integrated Amplifier

PRECISION MEETS PROTECTION

To protect the KT88 output vacuum tubes, Power Guard Screen Grid Sensor® (SGS) technology continuously monitors the current and adjusts the input signal in real-time to maintain optimal performance and tube integrity. If the current becomes too high, Power Guard SGS® will dynamically attenuate the input signal to keep the vacuum tubes operating at safe levels. Combined with Sentry Monitor™ fuse-less short-circuit protection, the MA2375 is engineered for enduring reliability without compromise.

MA2375 2-Channel Vacuum Tube Integrated Amplifier

CONNECTION FLEXIBILITY

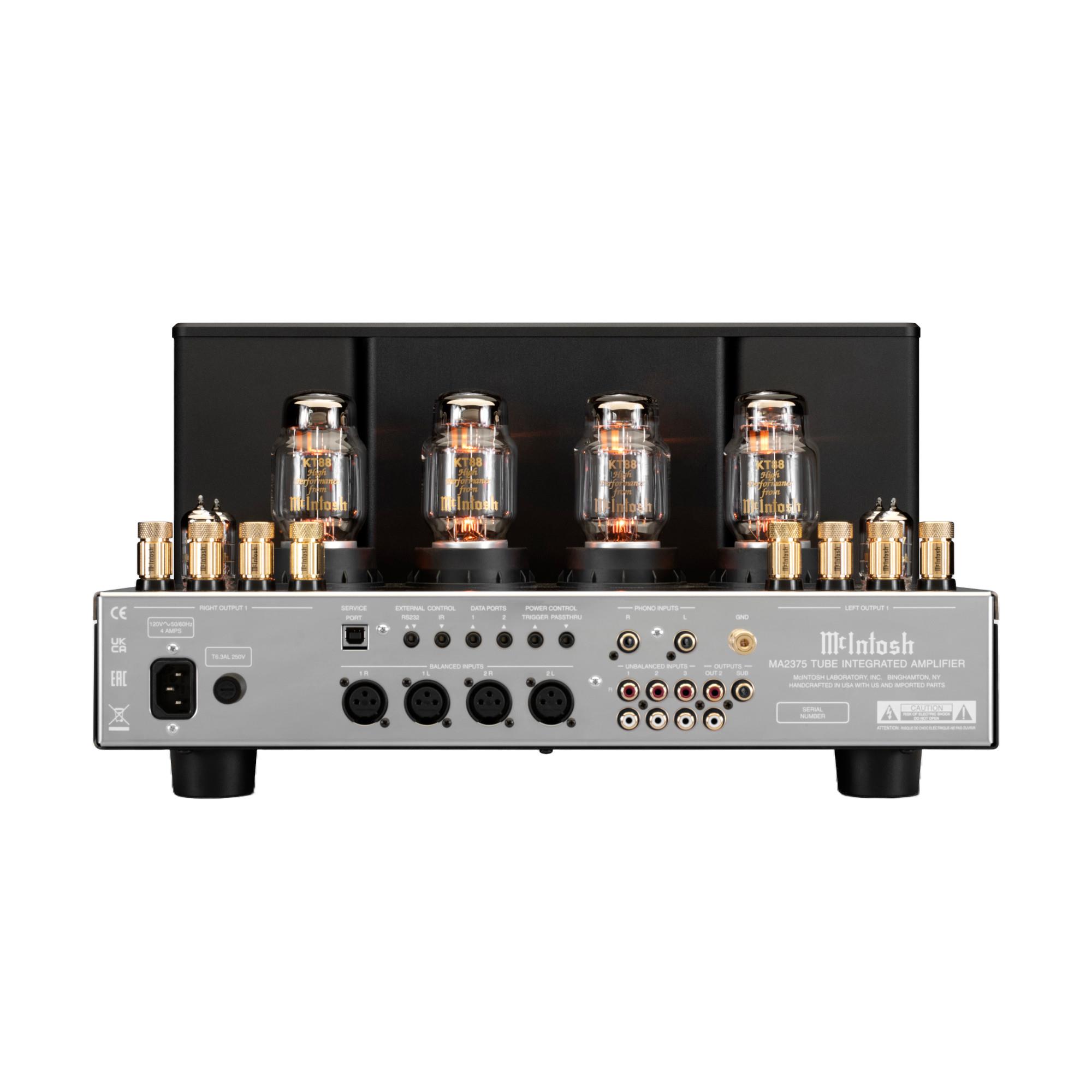

The MA2375 offers an array of analog inputs, including two balanced and three unbalanced connections, to connect music streamers with analog outputs, CD players, tuners, and D/A converters. Connecting a turntable is an easy task via the configurable phono input that can accommodate both Moving Coil and Moving Magnet cartridges. The phono stage includes adjustable Gain, Capacitance, Resistance Loading, and RIAA equalization for optimal vinyl playback. A subwoofer output enables the addition of a powered subwoofer to extend low-frequency performance.

Gold-plated Solid Cinch™ speaker binding posts ensure a secure and corrosion-resistant connection for your speaker cables, while an unbalanced preamp output supports the addition of a second amplifier in advanced multi-zone audio systems.

MA2375 2-Channel Vacuum Tube Integrated Amplifier

EASY CONTROL AND INTEGRATION

Convenience features include Power Control, enabling synchronized power on/off for connected McIntosh components; Home Theater PassThru for seamless integration into a home theater system; and Data Ports to send remote control commands to connected source components. An RS232 port enables advanced control options with third-party systems, or the unit can be operated via the included remote control for ultimate ease of use.

MA2375 2-Channel Vacuum Tube Integrated Amplifier

Electronic Specifications

FTC Power Output Rating75 W
Power Output per Channel75 W into 4, 8, or 16 ohms
Number of Channels2
Rated Power Band20Hz to 20kHz
Total Harmonic Distortion0.5% maximum with both channels operating from 250 milliwatts to rated power, 20Hz to 20kHz
Dynamic Headroom1.2dB
Frequency Response +0,-0.5dB20Hz to 20kHz
Frequency Response, +0, -3dB10Hz to 50kHz
Sensitivity Phono3mV
Sensitivity High Level (Balanced / Unbalanced)600mV/300mV
Sensitivity (Power Amp input)N/A
Signal To Noise Ratio (Moving Coil)75dB
Signal To Noise Ratio (Moving Magnet)75dB
Signal To Noise Ratio (High Level)95dB
Signal To Noise Ratio (Power Amp input)N/A
Input Impedance (Balanced / Unbalanced)44K/22K
Phono100 - 47kΩ; 50 - 400pF
Damping Factor>22
Maximum Output (Balanced / Unbalanced)16V Balanced, 8V Unbalanced

Connectivity

Balanced Input2
Unbalanced Input3
Phono Input Universal1 (configurable as either Moving Coil or Moving Magnet)
Upgradeable Digital Audio ModuleNo
Digital Coaxial Inputs0
Digital Optical Inputs0
Digital MCT Inputs0
Digital USB Input0
HDMI (ARC) Input0
Balanced Variable Output0
Unbalanced Fixed Output0
Unbalanced Variable Output1
Headphone Output1/4" High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Outputs1
AM/FM Tuner optionNo
Home Theater PassThruYes
Unbalanced Analog Connector TypePremium gold-plated solid brass
Speaker Binding Post TypePatented Solid Cinch™ Speaker Binding Posts
Service Port1

Control

Tone Controls5-Band
Tone Bypass and Input AssignYes
RS232 Control InputsYes
Power Control Outputs1
Rear Panel Data Ports2
Rear Panel IR Sensor InputsYes
Input Level MatchYes

General Specifications

Vacuum Tube or Solid StateVacuum Tube
Output TypeUnity Coupled Output Transformer
Output MetersYes
Dual Layer ChassisYes
Chassis FinishPolished stainless steel
McIntosh Monogrammed Heatsinks™No
Power Requirement120V 50/60Hz, 3.6A
Standby Power Requirement<0.25 Watts

Weights & Dimensions

Unit Dimensions (W x H x D)17-13/16" (45.2cm) x 9-15/16" (25.2cm) x 20-7/16" (51.9cm)
Unit Weight93 lbs (42.2 kg)
Shipping Weight103 lbs (46.7 kg)
MA2375 User Manual
