| Model |

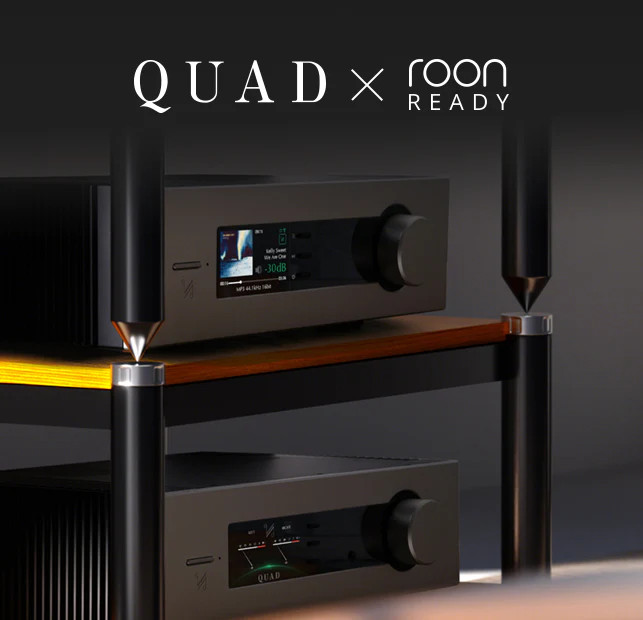

Platina Stream |
| General Description |
Network Player |
| Design Philosophy and Core Technology |

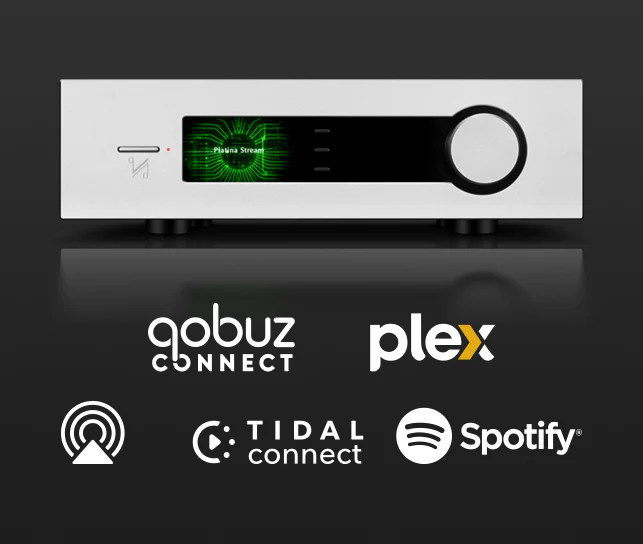

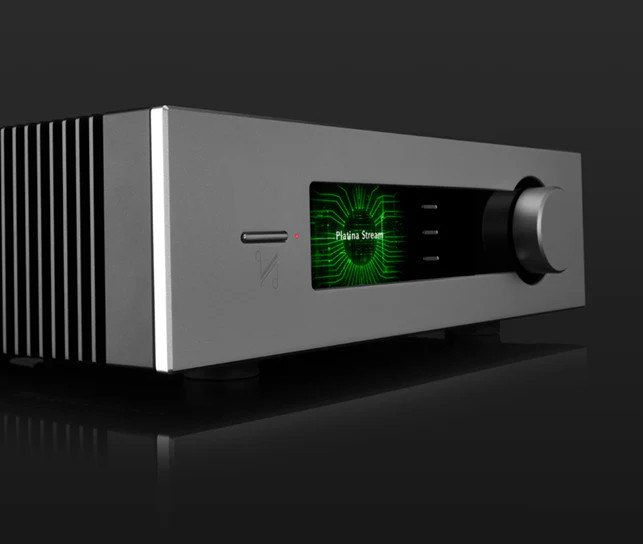

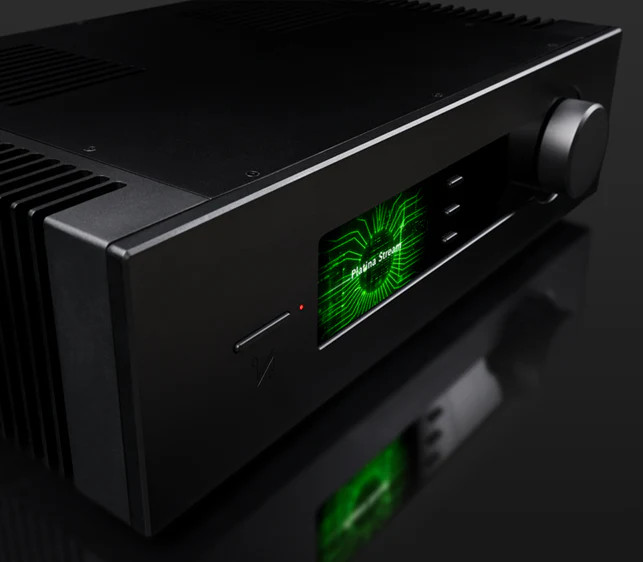

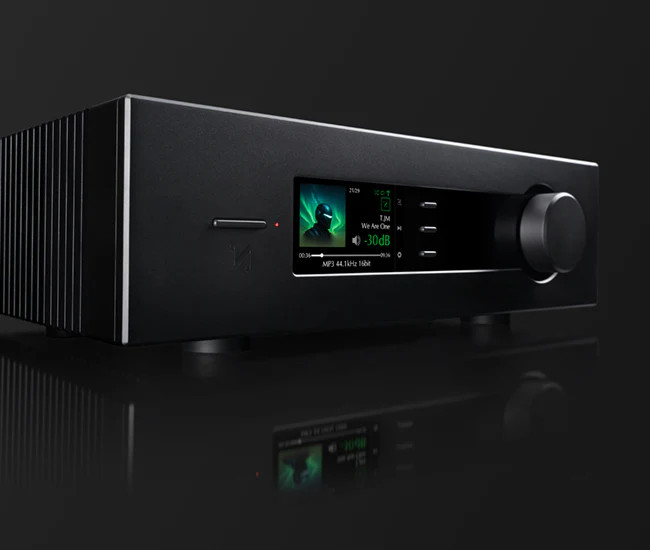

ES9038Pro 32-bit DAC 4.3" (800x480px) Large Size full view, full colour IPS LCD screen QUAD Platina Stream streaming technology (IEEE 802.11 a/b/g/n/ac) Native support for Roon Ready, Spotify Connect, TIDAL Connect, Qobuz Connect,TuneIn Radio and Plex Gapless Playback USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only) Android/iOS App Control Ethernet 10/100/1000 Base-T Ethernet, Auto-Negotiation |

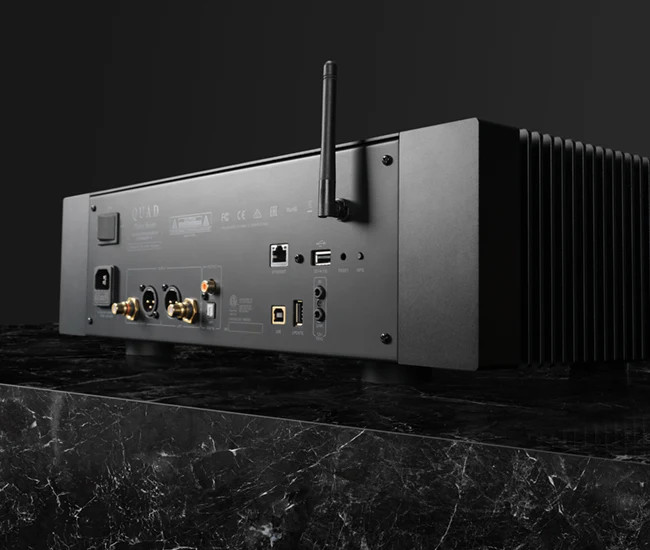

| Inputs |
1 x Network Streaming,1 x PC USB (USB B),1 x 12V trigger |
| Outputs |
1 x RCA,1 x XLR,1 x 12V trigger |
| Supported File Formats |
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD) PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF Compressed (Lossy) Audio: MP3 |
| Sampling Frequency |
PCM: 44.1kHz-768kHz (Supports 705.6kHz/768kHz fixed-point via streaming function) DSD: DSD64, DSD128, DSD256, DSD512 (Native) |
| Digital Section |
|
| Digital Output Intensity |
500 +/- 50mVpp |
| Output Impedance |
75 ohm |
| Frequency Response |
-0.01dB (20Hz-20kHz,ref.1kHz) |
| Max. Sampling Frequency |
192kHz/24bit |
| Digital Output |
1 x Coaxial , 1 x Optical |
| D to A Converter |
|
| Variable Output Voltage |
0 – 2.05Vrms |
| DAC |
ES9038Pro |
| Frequency Response |
+/-0.5dB (20Hz-20kHz ref.1kHz) |
| Total Harmonic Distortion |
<0.001% (1kHz@2.05Vrms ) |
| Max. Sampling Frequency |
768kHz / 32bit |
| Signal-to-noise Ratio (A-weighted) |
>116dB (RCA) >120dB (XLR) |
| Output Impedance |
120 ohm |
| General |
|
| Standby Power Consumption |
<0.5W |
| Net Weight |
11.8Kg |
| Gross Weight |
13.6Kg |
| Dimensions (mm) (W x H x D) |
445 x 134.5 x 348mm |
| Carton Size (mm) (W x H x D) |
500 x 225 x 450mm |
| Finish |
Black/Silver |
| Power Requirements (depending on region) |
|
| Safety Regulation Conformity |
220-240V ~ 50/ 60Hz 100-120V ~ 50/ 60Hz |
| Standard Accessories |
Power Cord, Remote Control, User Manual |
